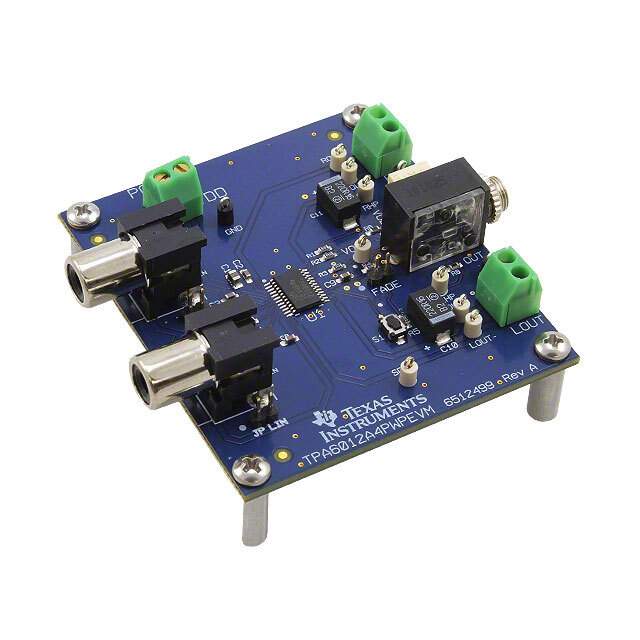

The TPA6012A4PWPEVM is an evaluation module designed by Texas Instruments to showcase the capabilities and features of the TPA6012A4, a stereo audio power amplifier. This EVM is an essential tool for engineers and audio designers who need to assess the performance of the TPA6012A4 for integration into their applications, such as televisions, monitors, laptops, portable speakers, and other audio systems.

The TPA6012A4 amplifier integrated into the EVM is capable of delivering 2 Watts of continuous RMS power per channel into a 4-ohm load, with less than 1% THD+N, from a 5V power supply. This makes it an excellent choice for applications that require a balance between power efficiency and audio performance. The device operates from a supply voltage range of 2.5V to 5.5V, allowing for flexibility in various system designs.

Texas Instruments' TPA6012A4PWPEVM features a variety of test points and jumpers, providing users with the ability to easily modify the circuit and optimize it for their specific use case. The EVM includes features like differential inputs, which help reduce common-mode noise, and a built-in 2-band equalizer that allows for basic audio tuning. Additionally, the EVM offers thermal and short-circuit protection features, enhancing the reliability and longevity of the amplifier in real-world scenarios.

The evaluation module is also equipped with an I²C interface, which enables software control of functions such as volume, mute, and gain settings. This digital interface provides a convenient method for integrating the EVM into a larger system and for automating testing procedures.

Overall, the TPA6012A4PWPEVM from Texas Instruments is a comprehensive development platform for audio professionals seeking to implement high-quality sound amplification in their products. With its robust feature set and flexible design, it serves as an invaluable resource for rapid prototyping and performance evaluation.
