Overview of Texas Instruments TPA3116D2DADR

The TPA3116D2DADR is a high-performance Class D amplifier from Texas Instruments, designed to deliver superior audio quality with high efficiency. This integrated circuit is part of the TPA3116D2 family, known for its exceptional power efficiency, which makes it an ideal solution for a wide range of audio applications, including home theater systems, soundbars, portable speakers, and automotive audio systems.

Key Features

• High Efficiency: The TPA3116D2DADR operates with an efficiency of up to 90%, minimizing heat generation and enabling the use of smaller heat sinks, which is critical for compact and portable audio devices.
• Output Power: It can deliver up to 50W into a 4-ohm load or 30W into an 8-ohm load per channel in stereo mode, and up to 100W into a 2-ohm load in mono configuration, providing ample power for most audio applications.
• Advanced Modulation: The device employs advanced modulation techniques that result in low idle loss and helps to maintain high-quality sound reproduction with low distortion.
• Multiple Operating Modes: It supports both stereo and mono output configurations, offering flexibility in system design.
• Protection Features: The TPA3116D2DADR includes multiple built-in protection features such as overtemperature, overvoltage, undervoltage, and short-circuit protection, ensuring reliable operation under various conditions.

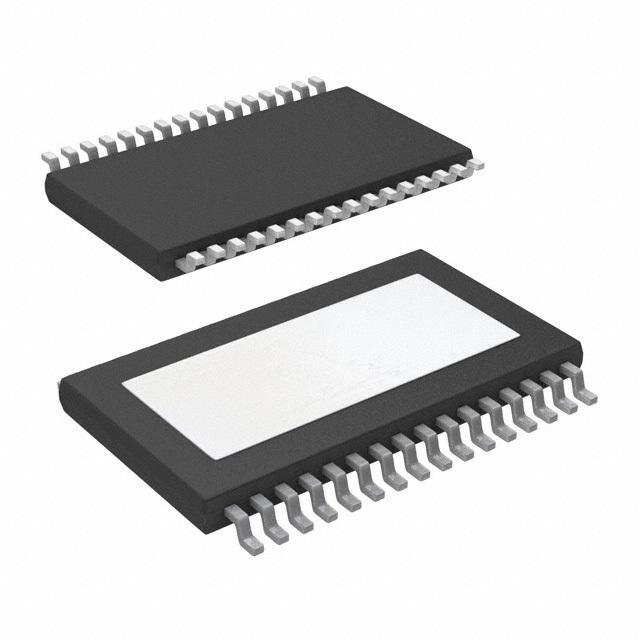

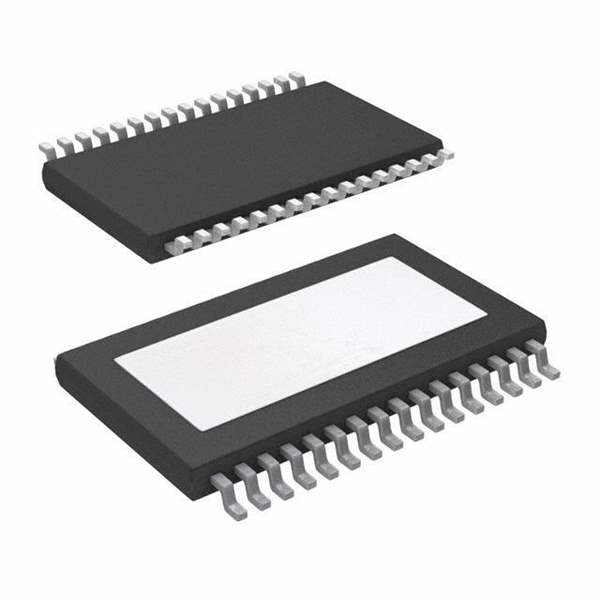

• Small Footprint: Housed in a 32-pin HTSSOP package, the TPA3116D2DADR takes up minimal space on a printed circuit board, which is beneficial for designing compact audio solutions.

Applications

The versatility of the TPA3116D2DADR makes it suitable for a diverse range of applications, such as:

• Wireless speakers
• Bluetooth headphones
• Soundbars and docking stations
• Home and professional audio systems
• Active speakers and public address systems
• Automotive sound systems

With its combination of high performance, efficiency, and reliability, the TPA3116D2DADR from Texas Instruments represents a sophisticated solution for designers looking to create superior audio experiences in their products.
