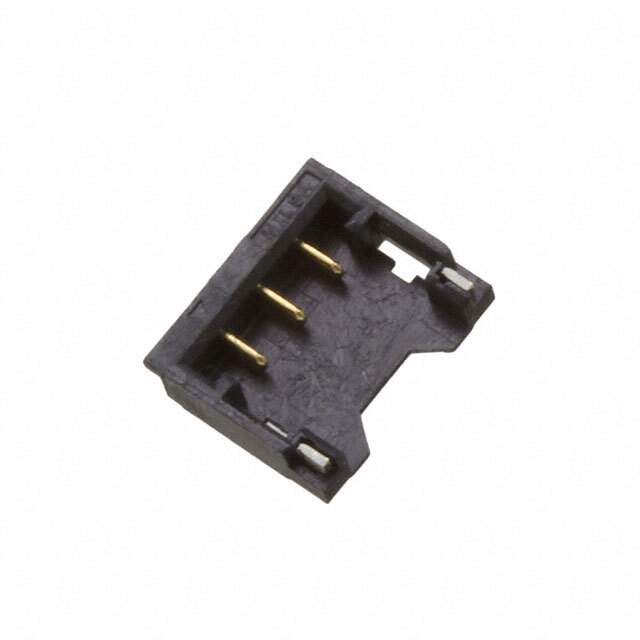

Same model may have multiple batches, images only for reference.

0781710003

Name: 0781710003
Brand: Molex, LLC
SKU: 538065
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0781710003
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Pico-EZmate Wire-to-Board Header, Vertical, Housing Height: 1.55mm \| CONN HEADER SMD 3POS 1.2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Plug
Contact Type	Tab
Pitch - Mating	0.047" (1.20mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Friction Lock
Insulation Height	0.055" (1.40mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	50V
Applications	Automotive, General Purpose, Lighting, Telecommunications
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1120753-0781710003
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 0781710003 CAD Model

Description

The 0781710003 is a 3-position plug connector manufactured by Molex.

Features: solder retention and has a shrouded 3-wall design
Applications: automotive, general purpose, lighting, and telecommunications applications
Pitch-Mating: 0.047" (1.20mm)
Voltage Rating: 50V
Contact Material: copper alloy
Insulation Material: liquid crystal polymer (LCP)
Contact Finish: gold
Insulation Color: black
Style: board to cable/wire style
Fastening Type: friction lock
