The Texas Instruments TMS32C6416DGLZ6E3 is a high-performance digital signal processor (DSP) from the TMS320C6000 DSP family. This particular model is designed to meet the rigorous demands of high-speed signal processing applications, making it an excellent choice for telecommunications, industrial control, digital imaging, audio, and video processing.

Key Features

• High-Performance DSP Core: This DSP features a fixed-point, VLIW (Very Long Instruction Word) architecture that is capable of executing up to eight instructions per cycle, with a core frequency of up to 1GHz.
• Large On-Chip Memory: It comes equipped with a large on-chip memory, including 1MB of Level 2 (L2) cache, which can be configured as mapped RAM or cache to enhance performance.
• Advanced Peripherals: The TMS32C6416DGLZ6E3 includes a variety of peripherals, such as a high-performance inter-integrated circuit (I2C) bus, multiple timers, and a host of serial interfaces for enhanced connectivity.
• Robust External Memory Interface: The device supports a wide range of external memory interfaces, including DDR SDRAM, allowing for flexible and scalable memory solutions.
• Power Management: With multiple power-saving modes, this DSP can effectively manage power consumption, making it suitable for both portable and mains-powered devices.

Applications

The versatile nature of the TMS32C6416DGLZ6E3 allows it to be used across various applications:

• Wireless and Wired Communications
• Medical Imaging Systems
• Professional Audio Equipment
• Industrial Control Systems
• High-Definition Video Processing

Package and Quality

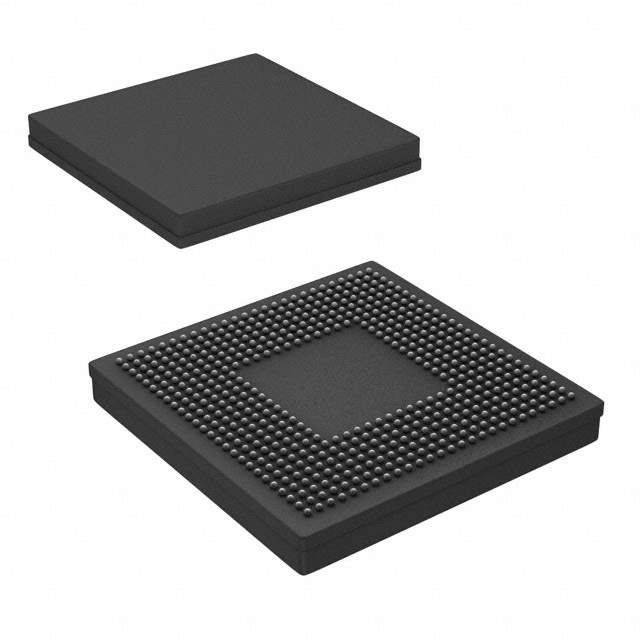

The TMS32C6416DGLZ6E3 comes in a 548-pin BGA (Ball Grid Array) package, which provides a compact footprint and reliable interconnection to the printed circuit board (PCB). Texas Instruments is known for its commitment to quality, and this product is no exception, meeting high standards for reliability and performance.

Support and Resources

Developers can access a wealth of resources including technical documentation, software tools, and community support, ensuring a seamless development process from prototype to production.
