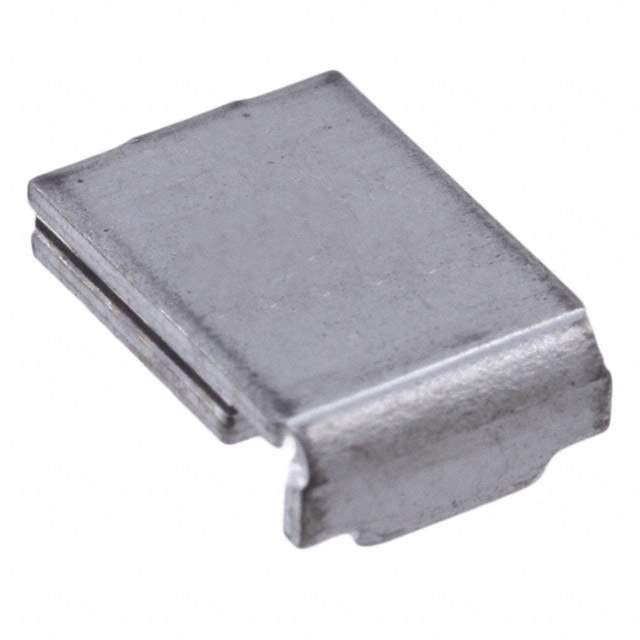

MF-SM250-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SM250-2

Part No MF-SM250-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 2.5A 15V SMD
Datasheet
MF-SM250-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 2.5A
Current - Trip (It) 5A
Time to Trip 25s
Resistance - Initial (Ri) (Min) 24 mOhm
Resistance - Post Trip (R1) (Max) 85 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.344" L x 0.264" W (8.75mm x 6.71mm)
Thickness (Max) 0.118" (3.00mm)
Approvals cURus, TUV
Win Source Part Number 003448-MF-SM250-2
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian MF-SM250-2 CAD Model

Description

The Bourns Inc. MF-SM250-2 is a polymeric type circuit protection that is AEC-Q200 rated and has a maximum voltage of 15V and a maximum current of 100A.

  • Voltage: 15V
  • Current: 100A
  • Thickness: 0.118" (3.00mm)
  • Dimension: 0.344" L x 0.264" W (8.75mm x 6.71mm)
  • ECCN: EAR99 compliant
  • Popularity: medium popularity
  • Supply and Demand Status: balanced
  • Description: an ideal choice for electronic applications that require a reliable circuit protection.
