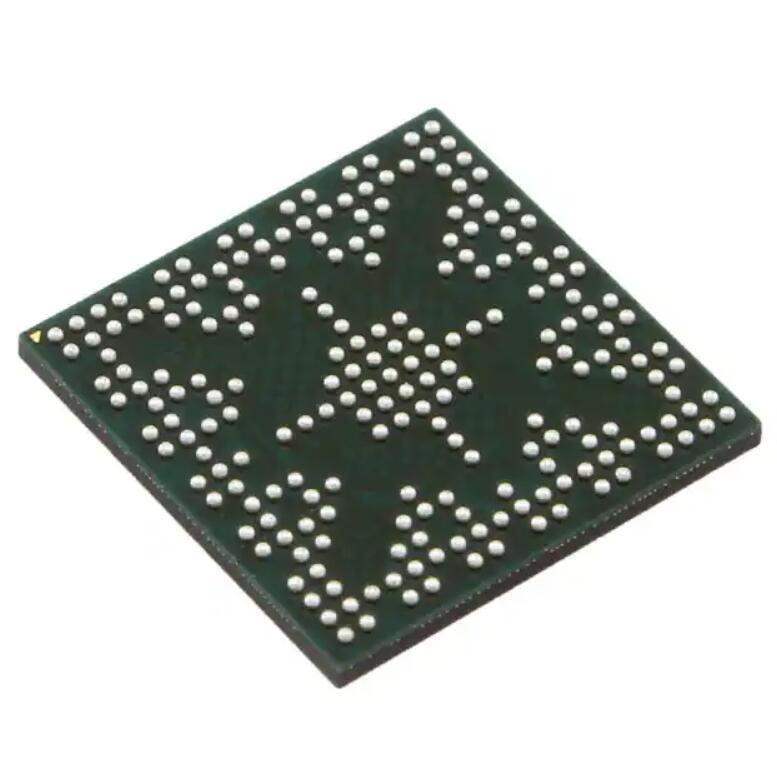

Product Overview: TM4C1290NCZADI3 by Texas Instruments

The TM4C1290NCZADI3 is a high-performance microcontroller unit (MCU) from Texas Instruments (TI), designed to cater to the demanding needs of modern embedded systems. This powerful MCU is part of the Tiva™ C series, which is renowned for its robustness, connectivity options, and advanced processing capabilities.

Key Features

• Core: The TM4C1290NCZADI3 is built around an ARM® Cortex®-M4 core with floating-point capabilities, running at speeds up to 120 MHz, providing the computational power necessary for complex algorithms and control systems.
• Memory: With an ample 1 MB of Flash memory and 256 KB of SRAM, this MCU can handle substantial codebases and data-intensive operations without the need for external memory components.
• Connectivity: The device boasts an impressive array of communication interfaces, including Dual Gigabit Ethernet MACs with IEEE 1588 Precision Time Protocol support, USB 2.0 Host/Device/OTG, CAN, I2C, SPI, and UARTs, making it ideal for networked applications.
• Advanced Peripherals: It features advanced peripherals such as a 32-channel Direct Memory Access (DMA), 16-bit PWM modules, and a 24-bit ADC with up to 2 MSPS, offering precision and flexibility in various applications.
• Security: Security features include hardware encryption and decryption engines for AES, DES, 3DES, SHA, and MD5, ensuring data protection and secure communication.
• Energy Efficiency: The MCU also supports multiple power-saving modes, making it suitable for low-power applications.

Applications

The TM4C1290NCZADI3 is a versatile MCU that can be employed in a wide range of applications such as industrial automation, home automation, point-of-sale systems, medical devices, and network appliances. Its robust set of features and connectivity options make it particularly well-suited for Internet of Things (IoT) devices that require secure data exchange and reliable operation in diverse environments.

Support and Resources

TI provides extensive support for the TM4C1290NCZADI3, including comprehensive documentation, development tools, and software libraries. Developers can take advantage of the TivaWare™ software suite, which includes driver libraries and example code to streamline the development process and reduce time to market.
