Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tray
Number of Channels 2, DUART
FIFO's 64 Byte
Protocol RS485
Data Rate (Maximum) 3Mbps
Operating Supply Voltage 1.62 V ~ 5.5 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD

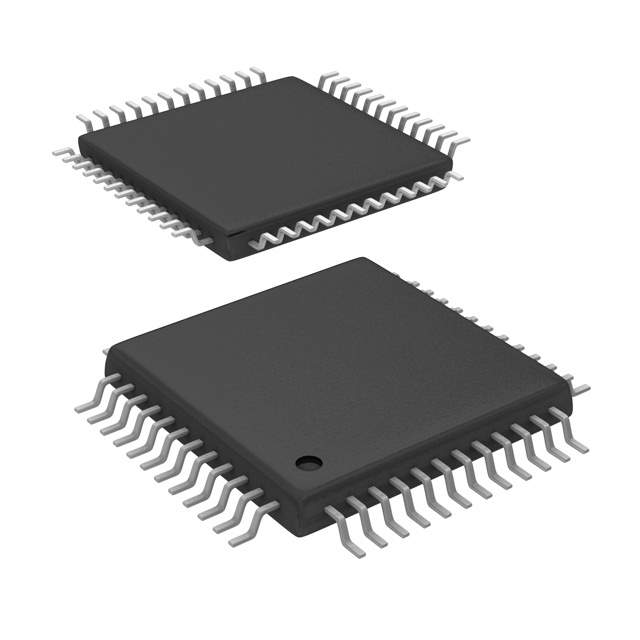

Package 48-TQFP
Manufacturer Package 48-TQFP (7x7)
Win Source Part Number 1268104-TL16C752CIPFB
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name TL16C752C
Introduction Date February 01, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TL16C752CIPFB CAD Model

Description

Product Overview: TL16C752CIPFB from Texas Instruments

The TL16C752CIPFB is a high-performance dual UART (Universal Asynchronous Receiver/Transmitter) integrated circuit from the reputable manufacturer Texas Instruments. This product is designed to meet the demanding requirements of today's advanced communication systems, providing a versatile solution for serial data exchange between a microcontroller and peripheral devices or between two microcontrollers.

Key Features

  • High Data Transfer Rate: The TL16C752CIPFB supports baud rates up to 3 Mbps, allowing for high-speed data transfer which is essential for modern communication applications.
  • Dual Channel: It features two independent UART channels, each with its own set of registers and FIFOs (First-In, First-Out memory queues). This enables simultaneous data processing and transmission on two different serial ports.
  • 64-Byte FIFO: Each UART channel is equipped with a 64-byte transmit and receive FIFO, which helps to reduce the overhead of CPU interventions and improves system efficiency.
  • Programmable Hardware Flow Control: The device supports hardware flow control using CTS (Clear to Send) and RTS (Request to Send) signals, which is critical for preventing data loss during high-speed communications.
  • Auto Flow Control: It also offers an automatic flow control feature which simplifies the management of data flow in various communication scenarios.
  • Flexible Operating Voltage: The TL16C752CIPFB operates at a voltage range of 2.5V to 5.5V, making it suitable for a wide array of applications with different power requirements.
  • Industrial Temperature Range: It is designed to operate over an industrial temperature range of -40°C to 85°C, ensuring reliability and performance under extreme conditions.

Applications

The TL16C752CIPFB is ideal for use in a variety of applications, including but not limited to:

  • Point-of-Sale (POS) terminals
  • Industrial control systems
  • Factory automation
  • Networking equipment
  • Telecommunications systems

Package and Quality

The device is available in a 48-pin LQFP (Low-Profile Quad Flat Package) which is suitable for surface mount technology. Texas Instruments ensures high-quality standards, and the TL16C752CIPFB is no exception, providing reliable and consistent performance for critical communication tasks.

For detailed specifications, application notes, and additional resources, please refer to the official Texas Instruments datasheets and product documentation.
