Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 34 Weeks
Features Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class D 48-HTSSOP
Manufacturer Texas Instruments
Series PurePath™
Package Tube
Operating Temperature Range -25°C ~ 85°C (TA)
Mounting Surface Mount

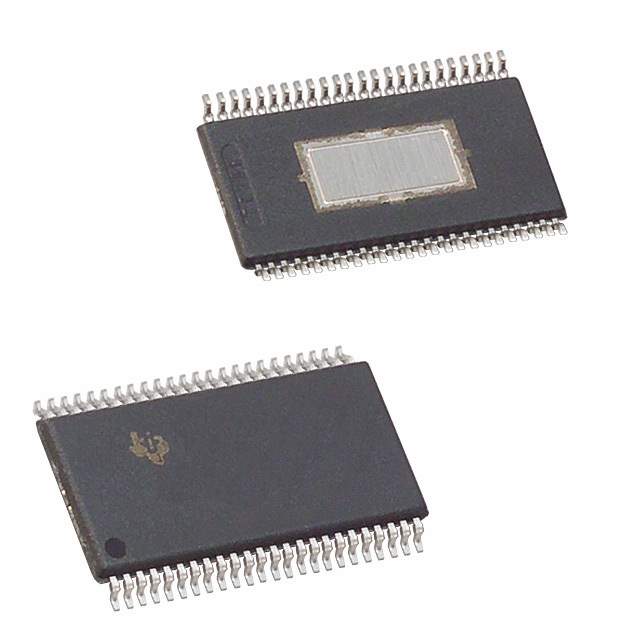

Package 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Case / Package 48-HTSSOP
Family Name TAS5756
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number TAS5756MDCA-ND, 296-46543-5
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936117-TAS5756MDCA
Ultra Librarian 3D Model Ultra Librarian TAS5756MDCA CAD Model

Description

The TAS5756MDCA is a sophisticated digital audio amplifier from Texas Instruments, designed to deliver high-quality sound with exceptional clarity and accuracy. This advanced piece of audio technology is part of TI's PurePath™ Smart Amp product line, which is renowned for its ability to enhance audio performance in a wide range of consumer electronics.

Key Features

  • Efficiency: The TAS5756MDCA operates with a high level of efficiency, which not only conserves energy but also reduces heat dissipation, enabling the use of smaller heat sinks and potentially lowering the overall cost of the system.
  • Audio Performance: With support for a sampling rate of up to 192 kHz, this amplifier can handle high-resolution audio streams, ensuring that the sound output is of the highest fidelity.
  • Integrated Feedback: The inclusion of integrated feedback allows for performance tuning and system optimization, which can lead to improved sound quality and a more reliable audio experience.
  • Flexibility: The TAS5756MDCA is designed to be flexible in application, supporting a variety of speaker loads and configurations. This makes it suitable for use in a range of products, from compact portable speakers to high-powered home audio systems.

Applications

This digital audio amplifier is ideal for a variety of applications, including:

  • Wireless speakers
  • Soundbars
  • Home theater systems
  • Smart audio devices

Technical Specifications

The TAS5756MDCA boasts a range of technical specifications that highlight its capabilities:

  • Output Power: Capable of delivering up to 20W into an 8-ohm load
  • Amplifier Type: Class-D
  • THD+N: Low distortion levels, contributing to cleaner audio output
  • Integrated DSP: Features an integrated digital signal processor for advanced audio processing
  • I²S and TDM Digital Audio Inputs: Offers flexibility in digital audio input formats

Overall, the TAS5756MDCA from Texas Instruments represents a top-of-the-line option for manufacturers and audio enthusiasts looking to enhance the audio quality of their products with a reliable, high-performance amplifier.
