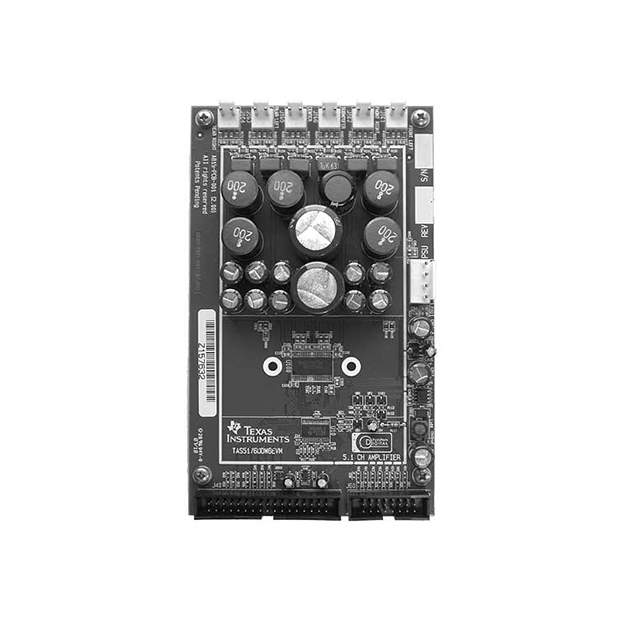

Product Overview: TAS5176DDW6EVM from Texas Instruments

The TAS5176DDW6EVM is an exceptional evaluation module designed by Texas Instruments to showcase the capabilities of the TAS5176, a high-performance, six-channel digital audio power amplifier. This innovative module allows designers and audio enthusiasts to fully explore the features and audio quality of the TAS5176 chip in a user-friendly environment.

Key Features of TAS5176DDW6EVM

• High-Quality Audio Performance: The TAS5176DDW6EVM delivers pure and powerful sound with its six channels, making it suitable for home theater systems, multi-channel audio applications, and active speaker setups.
• Efficient Power Use: Equipped with Texas Instruments' PurePath™ technology, the module ensures efficient power usage while maintaining high audio fidelity, resulting in a greener and more cost-effective solution.
• Flexibility: The evaluation module offers flexibility in configuration, supporting various audio formats and allowing users to experiment with multiple speaker configurations.
• Integrated Protection: The TAS5176 chip includes a suite of protection features such as overcurrent, undervoltage, and thermal protection, ensuring the longevity and reliability of both the EVM and the end application.
• Easy to Use: The TAS5176DDW6EVM is designed for simplicity, with an intuitive layout and accessible connections, making it straightforward for users to set up and begin testing without a steep learning curve.

Applications

The versatility of the TAS5176DDW6EVM makes it an ideal choice for a wide range of audio applications, including:

• Home theater systems
• Multi-room audio systems
• Professional audio equipment
• Active speakers and soundbars

Technical Specifications

At the heart of the EVM is the TAS5176 chip, which is capable of driving up to 100W per channel into 6 ohms. The module requires a single power supply and provides a PHOENIX connector for easy speaker connection. Additionally, it includes an I²C interface for advanced control and monitoring of the amplifier's functions.

The TAS5176DDW6EVM by Texas Instruments represents a powerful tool for both professionals and hobbyists to develop and test high-quality audio solutions with confidence and ease.
