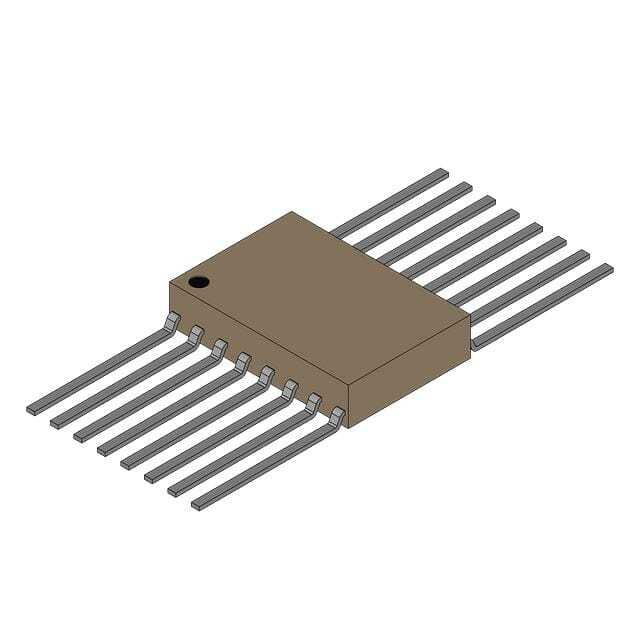

The SNJ54LS221W is a versatile and high-quality dual monostable multivibrator from Texas Instruments, designed to deliver reliable performance for a wide range of digital applications. This integrated circuit is part of the 54LS series, known for its low power consumption and high-speed operation.

Key Features

• Monostable Multivibrator: The SNJ54LS221W contains two independent monostable multivibrators, also known as 'one-shots', which are capable of generating precise time delays or timing pulses on demand.
• High-Speed Operation: This device is optimized for speed, with typical propagation delays as low as 15 ns, making it suitable for high-speed systems.
• Multiple Triggering Modes: It can be triggered on the falling edge of the input pulse, ensuring versatility in responding to different signal conditions.
• Adjustable Pulse Width: The pulse duration is programmable by selecting external resistance and capacitance values, allowing for a wide range of timing intervals.
• Retriggerable Mode: For applications requiring longer pulse widths, the SNJ54LS221W can be retriggered by applying additional pulses within the timing interval.
• Direct Clear Input: A direct clear input allows immediate termination of the output pulse, providing an additional layer of control.

Applications

The SNJ54LS221W is suitable for use in various digital systems, including:

• Timing circuits
• Sequential timers
• Pulse shaping
• Delayed switching
• Frequency division

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable components. The SNJ54LS221W is built to meet stringent industry standards, ensuring performance and durability in even the most demanding conditions. With its robust design and proven track record, the SNJ54LS221W is a component that engineers can trust for their critical timing solutions.
