SN74LVT32244ZKER 32-Bit Buffer/Driver from Texas Instruments

The SN74LVT32244ZKER is a high-performance, 32-bit buffer and driver designed by Texas Instruments to provide high-speed bus interface solutions for communication and computing applications. With its LVT (Low-Voltage TTL) technology, this device ensures low power consumption while maintaining high-speed operation, making it suitable for interfacing with 3.3V logic levels.

Key Features:

• 32-Bit Bus Interface: It features a 32-bit interface, allowing for efficient data transfer and communication across multiple bus lines.
• 3-State Outputs: The device includes 3-state outputs, which can be placed in a high-impedance state, effectively disconnecting the output from the rest of the circuit. This is useful for bus-oriented systems where multiple drivers can share the same lines.
• Low-Voltage Operation: Designed to operate at 3.3V, it provides compatibility with low-voltage systems, reducing power consumption without compromising performance.
• High Drive: The SN74LVT32244ZKER can drive up to 64 mA at 3.3V, making it capable of driving heavy loads or multiple outputs simultaneously.
• Flow-Through Architecture: Its flow-through pinout facilitates easy PCB layout by placing the data inputs near the source and the outputs near the data destination.

Applications:

This buffer/driver is ideal for various applications, including:

• Bus Interface for Servers and Routers
• Memory Drivers
• Backplane Driving
• Data Communication Systems
• High-Speed Signal Gating

Product Specifications:

• Part Number: SN74LVT32244ZKER

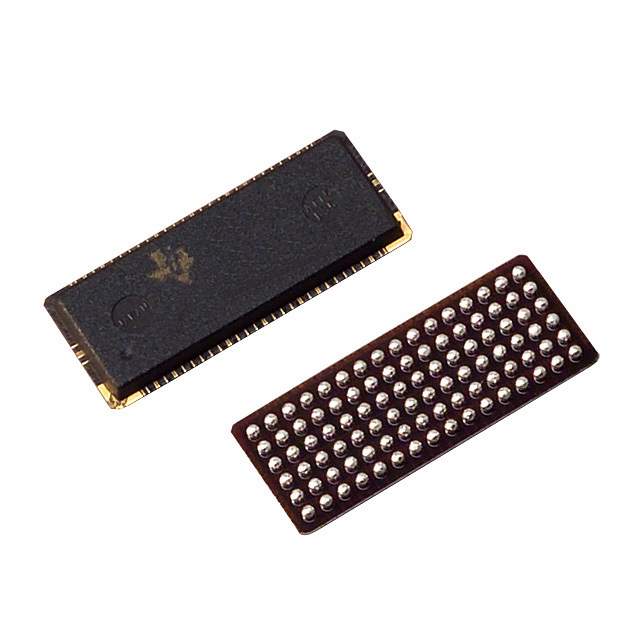

• Package: 96-Ball BGA (ZKE)
• Operating Temperature Range: -40°C to 85°C
• Logic Family: LVT
• Logic Type: 32-Bit Buffer/Driver with 3-State Outputs

With its robust design and advanced features, the SN74LVT32244ZKER from Texas Instruments is a reliable choice for designers looking to implement high-speed data buses with minimal power draw and maximum efficiency.
