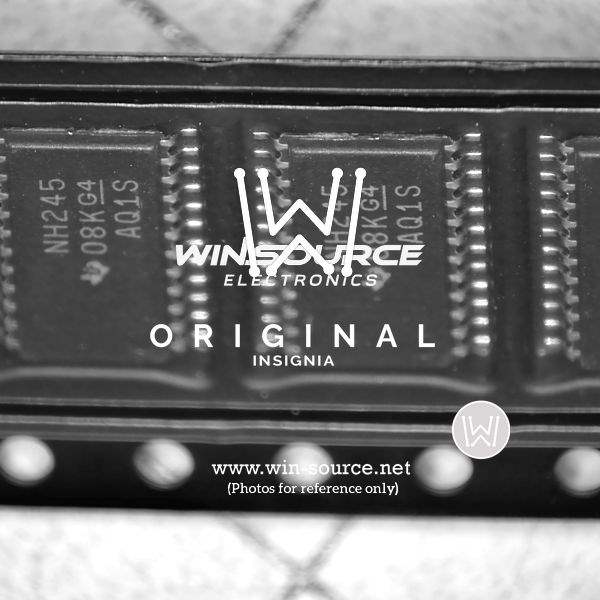

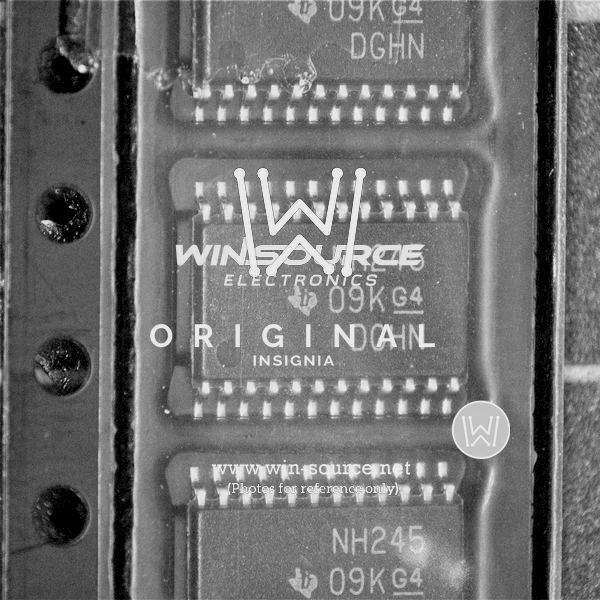

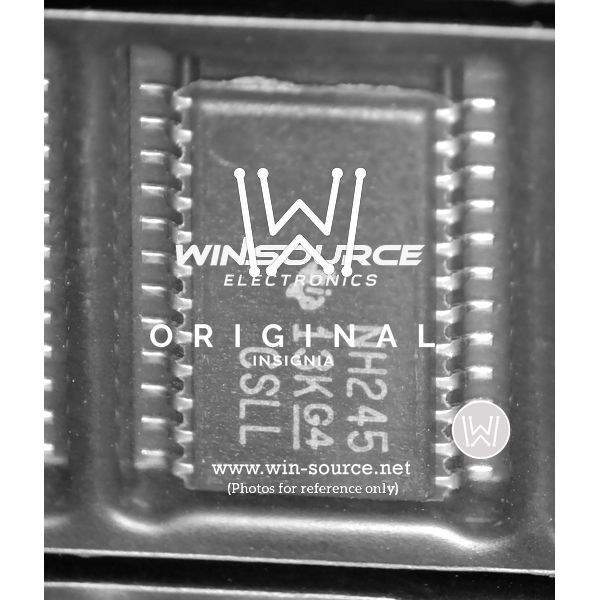

Product Description: SN74LVC8T245DBR from Texas Instruments

The SN74LVC8T245DBR is an exceptional product from Texas Instruments, a global leader in semiconductor technology. This product is a 24-pin, dual-supply, 8-bit, non-inverting bus transceiver that uses two separate configurable power-supply rails. It is specifically designed for asynchronous communication between data buses.

The direction control inputs (DIR1 and DIR2) adjust the transmission direction. The output-enable inputs (OE1 and OE2) can disable the outputs to allow for bidirectional data flow between ports. The A-Port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. On the other hand, the B-Port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

The SN74LVC8T245DBR is available in a small shrink outline package (SSOP), providing a compact and efficient solution for your circuit designs. It is ideal for applications in telecommunications, computing, networking, and industrial sectors. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow when the device is powered down.

With its wide voltage range, high speed, and low power consumption, the SN74LVC8T245DBR from Texas Instruments is an excellent choice for your digital logic interface needs. It is designed to offer high performance, reliability, and versatility, making it an essential component in a wide range of electronic systems.
