Overview of SN74LVC1G373DCKRG4

The SN74LVC1G373DCKRG4 is a single D-type latch with a 3-state output, designed and manufactured by Texas Instruments. This high-performance, low-voltage CMOS device is part of the 74LVC family, which is well-known for its low power consumption and high-speed operation. It is particularly suitable for use in high-frequency, high-bandwidth designs where power efficiency is crucial.

Key Features

• High-Speed Performance: The SN74LVC1G373DCKRG4 operates at a voltage range of 1.65 V to 5.5 V, which allows for a flexible interface with 5V TTL logic levels. It is capable of functioning at high speeds, with a typical propagation delay time of only a few nanoseconds.
• Low Power Consumption: This device is optimized for low power consumption, making it ideal for battery-powered and portable applications where power efficiency is essential.
• 3-State Outputs: The 3-state outputs ensure that multiple devices can be connected to a common bus without interference, which is critical for bus-oriented systems.
• Latch-Up Performance: The SN74LVC1G373DCKRG4 exceeds 250 mA of latch-up performance per JESD 17, providing robustness and stability to the system.
• ESD Protection: The device includes on-chip ESD protection, which helps to prevent damage from electrostatic discharges during handling and operation.

Applications

The versatility of the SN74LVC1G373DCKRG4 makes it suitable for a wide range of applications, including:

• Memory storage and retrieval systems
• Sample-and-hold circuits
• Communication systems
• Data management and buffering in microprocessor systems
• Portable electronics

Package and Quality

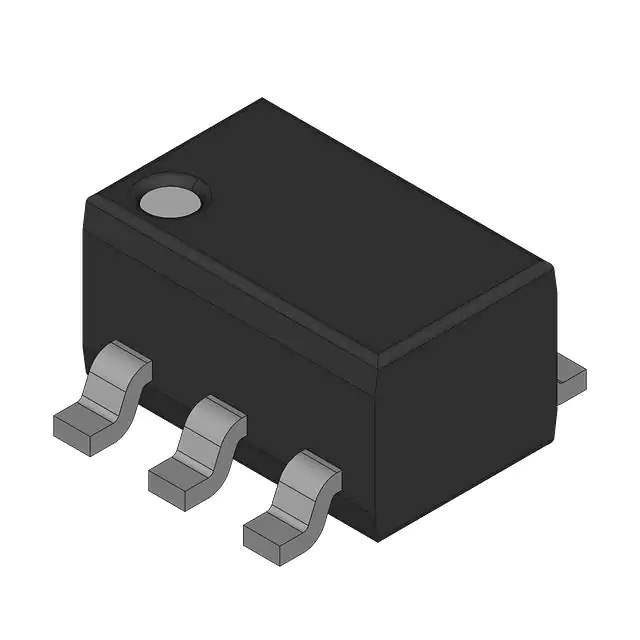

The device comes in a small-outline package (SC70), which is ideal for space-constrained applications. The SN74LVC1G373DCKRG4 is also characterized for operation from -40°C to 85°C, ensuring reliability across a wide range of environmental conditions. Texas Instruments is committed to high standards of quality and reliability, and this product is no exception, meeting or exceeding industry standards for performance and durability.

With its combination of high-speed operation, low power consumption, and robust protection features, the SN74LVC1G373DCKRG4 is an excellent choice for designers looking to optimize their digital logic systems.
