SN74AVCA406LGXYR - Texas Instruments

The SN74AVCA406LGXYR is a high-performance, 6-bit, dual-supply bus transceiver from Texas Instruments, designed to facilitate bidirectional communication between two buses of varying voltage levels. This component is part of TI's advanced interface portfolio and is optimized for use in applications where logic signal levels need to be shifted between different domain voltages, such as between a 3.3V bus and a 5V bus.

Key Features

• Voltage Level Translation: The SN74AVCA406LGXYR supports voltage level translation from 0.8V to 3.6V on the A side and 1.65V to 5.5V on the B side, making it versatile for multi-voltage systems.
• High-Speed Data Transfer: With a maximum data rate of 380 Mbps, this transceiver is suitable for high-speed data transfer applications, ensuring efficient communication between devices.
• Low Power Consumption: Designed for low-power operation, it helps to reduce the overall power consumption of the system, making it ideal for battery-powered devices.
• Flow-Through Architecture: The pin-out design supports a flow-through architecture that simplifies PCB layout and reduces signal distortion, enhancing signal integrity.
• ESD Protection: It features robust electrostatic discharge (ESD) protection, which safeguards the device against damage from static electricity.

Applications

The versatility of the SN74AVCA406LGXYR makes it a prime choice for a wide array of applications, including but not limited to:

• Level translation for bus interfacing in multi-voltage systems
• Communication interfaces such as SPI, I2C, and UART
• Mobile phones, personal digital assistants (PDAs), and other portable devices
• Data communication in networking equipment and computer peripherals

Product Packaging and Quality

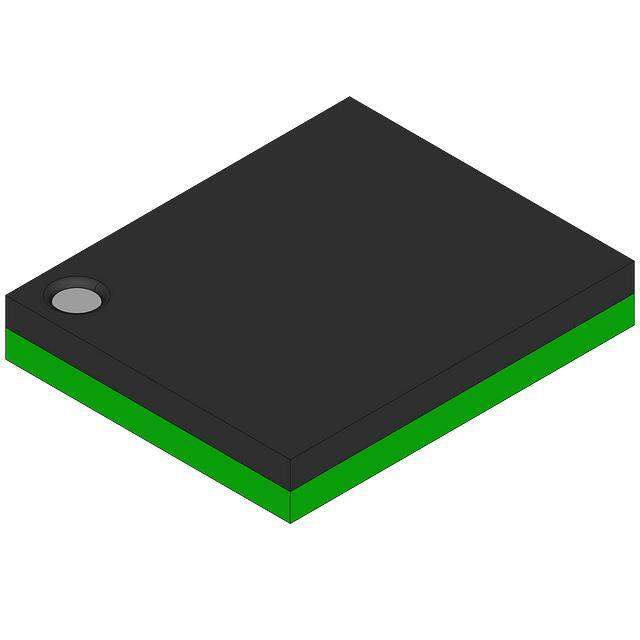

The SN74AVCA406LGXYR is available in a compact X2QFN package, which is designed to occupy minimal space on a printed circuit board (PCB) and is suitable for space-constrained applications. Texas Instruments ensures that this product meets high-quality standards, with rigorous testing and validation to deliver reliable performance in a range of environmental conditions.

For designers and engineers looking to integrate level-shifting capabilities into their systems with minimal power draw and high-speed performance, the SN74AVCA406LGXYR from Texas Instruments is an excellent solution that promises quality, durability, and versatility.
