SN74AVC4T245PW: 4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs

The SN74AVC4T245PW from Texas Instruments is a 4-bit non-inverting bus transceiver designed to provide seamless communication between devices operating at different voltage levels. This integrated circuit is part of the AVC family, known for its low-voltage operation and high-speed interfacing capabilities.

Key Features

• Voltage-Level Translation: The SN74AVC4T245PW is capable of translating signals between two different voltage domains, enabling devices with different supply voltages to communicate without the need for additional level-shifting components.
• Dual-Supply Operation: This transceiver can operate from 1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side, providing the flexibility needed for interfacing with a wide range of devices.
• High-Speed Data Transfer: With a maximum data rate of 380 Mbps, this transceiver is suitable for high-speed data transmission applications, ensuring efficient communication between components.
• Low Power Consumption: The device features a low on-state resistance, which minimizes the power dissipation and makes it suitable for battery-powered applications.
• 3-State Outputs: The 3-state outputs ensure that multiple devices can share a common data bus without interference, as the outputs can be placed in a high-impedance state.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, safeguarding the transceiver against damage from static electricity.

Applications

The SN74AVC4T245PW is ideal for a variety of applications where voltage level translation or dual-supply operation is required. It is commonly used in:

• Mobile Phones
• Computers and Laptops
• Networking Equipment
• Portable Media Players
• Consumer Electronics

Package and Quality

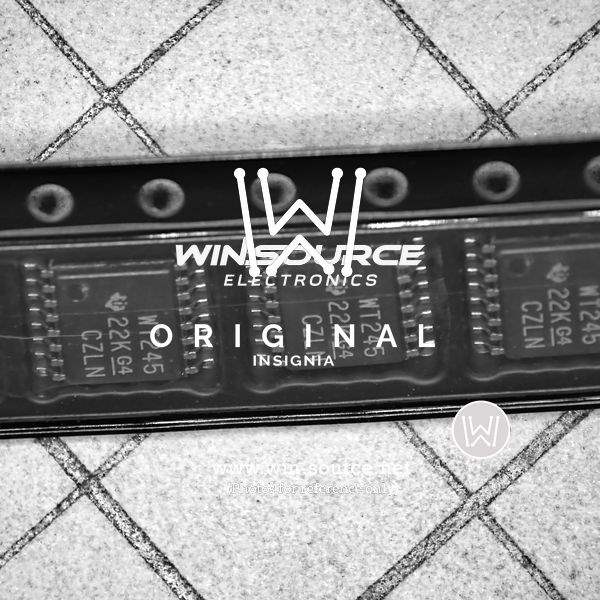

The device is offered in a 16-pin TSSOP (PW) package, which is compact and suitable for space-constrained applications. Texas Instruments is committed to high-quality standards, and the SN74AVC4T245PW is designed to meet or exceed industry requirements for performance and reliability.
