Overview of SN74AUP2G126RSER

The SN74AUP2G126RSER from Texas Instruments is a high-performance, dual non-inverting buffer/driver with 3-state outputs designed to operate from 0.8 V to 3.6 V. This makes it ideal for low-voltage and low-power applications. The device is part of the advanced ultra-low power (AUP) family, which is characterized by reduced power consumption without sacrificing speed and performance.

Key Features

• Low Static-Power Consumption: The SN74AUP2G126RSER is optimized for low static-power consumption, drawing only a microamp range of current when idle.
• Low Dynamic-Power Consumption: At 3.6 V, the device operates with a dynamic-power consumption of only 0.9 µA/MHz, making it highly efficient during operation.
• Low Input Capacitance: The input capacitance is designed to be minimal, resulting in reduced drive requirements and faster signal propagation.
• High Drive: Despite its low-power design, the SN74AUP2G126RSER can drive up to 50 mA at the output, allowing it to control a variety of loads.
• 3-State Outputs: The outputs can be placed in a high-impedance state, which is useful for sharing a common data bus or reducing power consumption when the outputs are not in use.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring reliability and stability in various environments.

Applications

The SN74AUP2G126RSER is suitable for a wide range of applications, particularly where power efficiency and space are critical. It is commonly used in:

• Mobile phones
• PDAs
• Portable media players
• Low-power handheld devices
• Portable medical equipment

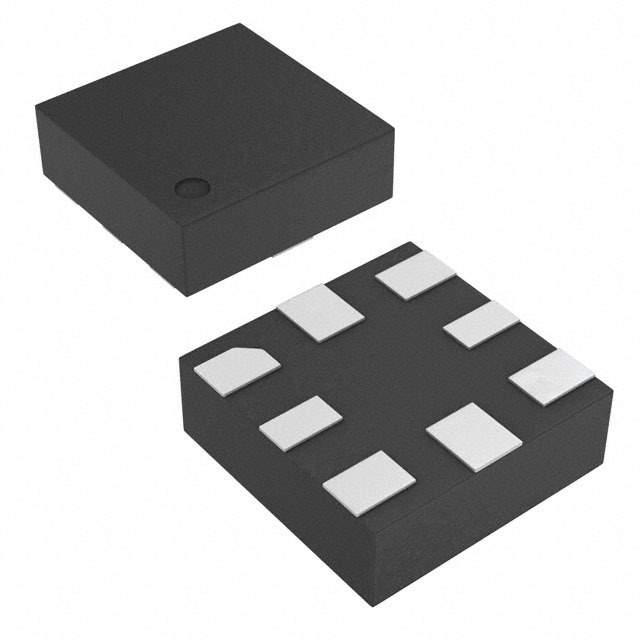

Product Packaging

Supplied in a small-footprint, thin shrink small-outline package (SSOP), the SN74AUP2G126RSER is designed for space-constrained applications. The package is also RoHS compliant and is designed for surface-mount technology (SMT), which facilitates efficient assembly and soldering on printed circuit boards.

Overall, the SN74AUP2G126RSER is a reliable and efficient solution for designers seeking to optimize their systems for low-power operation without compromising on performance.
