Product Overview: SN65HVD255DEVM

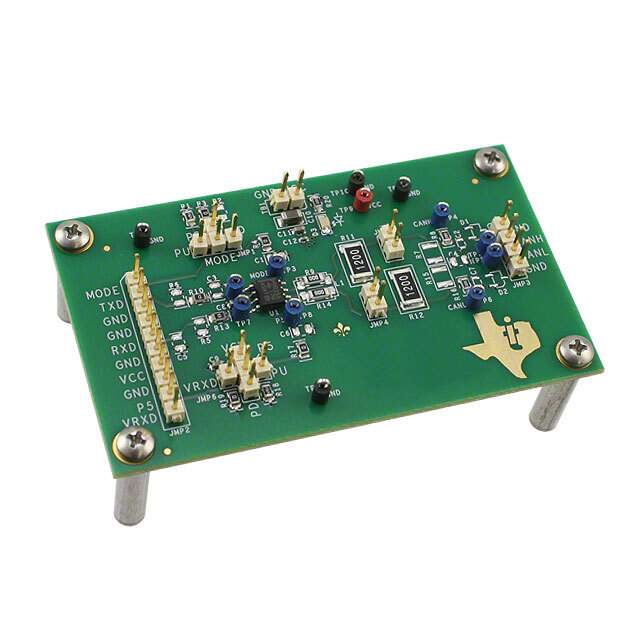

The SN65HVD255DEVM is a compact evaluation module designed by Texas Instruments to facilitate the testing and development of the SN65HVD255 CAN (Controller Area Network) transceiver. This device is ideal for engineers and developers who require a reliable transceiver that supports the CAN protocol for industrial, automotive, and general-purpose applications.

Key Features

• High Compatibility: The SN65HVD255 CAN transceiver is compatible with the ISO 11898-2 standard, ensuring interoperability with other CAN-compliant devices.
• Robust Design: With its wide common-mode range and bus-fault protection of up to ±36V, the transceiver is designed to withstand harsh electrical environments, making it suitable for demanding applications.
• Energy-Efficient: The device features a low-current standby mode, which makes it an excellent choice for power-sensitive designs.
• Flexible Data Rates: The SN65HVD255 supports data rates up to 1 Mbps, allowing for fast and efficient communication over CAN networks.
• Diagnostic Capabilities: It includes diagnostic features such as thermal shutdown and open-circuit detection, which contribute to the robustness and reliability of the system.

Development Module Highlights

• Easy Integration: The evaluation module is designed for easy integration into existing systems, with a DIP form factor that allows it to be used on breadboards or with standard sockets.
• Direct Access: Users have direct access to the pins of the SN65HVD255 transceiver, enabling them to test all functionalities of the device thoroughly.
• Indicator LEDs: Onboard LEDs provide visual feedback for the CAN bus activity, power, and error states, simplifying the debugging process.
• Support Documentation: Texas Instruments provides comprehensive documentation, including the evaluation module's schematic, user guide, and application notes, to assist developers in getting started quickly.

The SN65HVD255DEVM is a versatile and reliable solution for those looking to evaluate the performance of the SN65HVD255 CAN transceiver in their applications. Its robust features, combined with Texas Instruments' support and resources, make it an invaluable tool for engineers working on CAN network designs.
