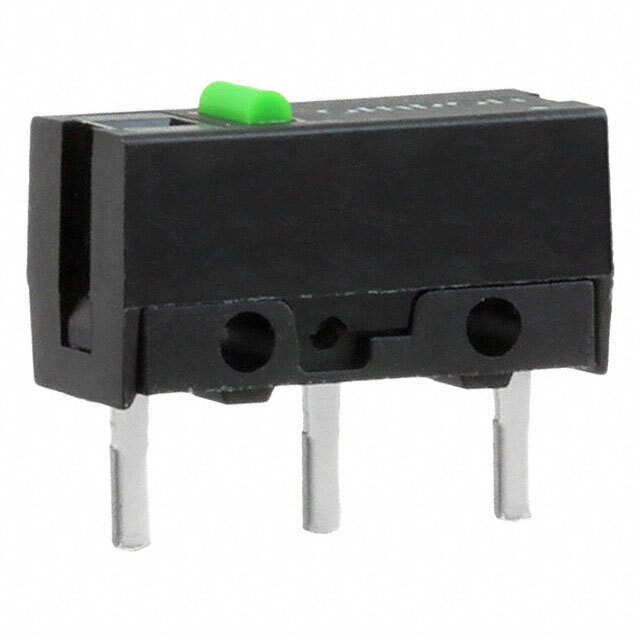

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Features Sealed - Flux Protection
Operating Force 50gf
Release Force 6.118gf
Operating Position 0.594" (15.1mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Mechanical Life 30,000,000 Cycles
Electrical Life 200,000 Cycles
Temperature Range - Operating -25°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1551876-D2S-01L2
Ultra Librarian 3D Model Ultra Librarian D2S-01L2 CAD Model
