Same model may have multiple batches, images only for reference.

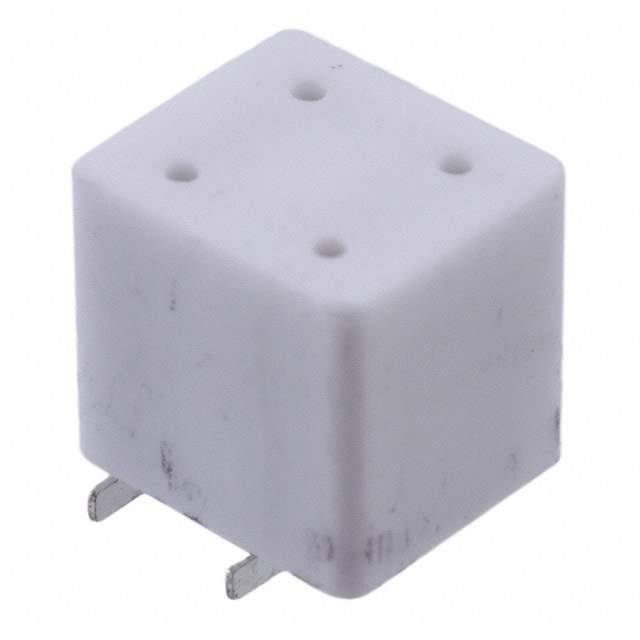

CMF-SD25-10-2 Real Image
Same model may have multiple batches, images only for reference.

CMF-SD25-10-2

Part No CMF-SD25-10-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description CPTC FUSE RESETTABLE
Datasheet
CMF-SD25-10-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Ceramic
Voltage - Max 220V (600V Int)
Current - Max 2.5A
Current - Hold (Ih) (Max) 130mA
Current - Trip (It) 260mA
Time to Trip 300ms
Resistance - 25°C (Typ) 25 Ohm
Mounting SMD (SMT)
Dimension 0.402" L x 0.354" W (10.20mm x 9.00mm)
Thickness (Max) 0.425" (10.80mm)
Win Source Part Number 1032125-CMF-SD25-10-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMF-SD25-10-2 CAD Model

Description

The Bourns Inc. CMF-SD25-10-2 is a ceramic type surface mount fuse designed for circuit protection.

  • Maximum Thickness: 0.425" (10.80mm)
  • Maximum Voltage: 220V (600V Int)
  • Maximum Current: 2.5A
  • Current Hold: 130mA
  • Trip Current: 260mA
  • Time to Trip: 300ms
  • Resistance @ 25°C: 25 Ohm
  • Resistance Tolerance: ±10%
  • Mounting: SMD (SMT) technology
  • Dimensions: 0.402" L x 0.354" W (10.20mm x 9.00mm)
  • Popularity: popular
  • Supply and Demand Status: balanced
