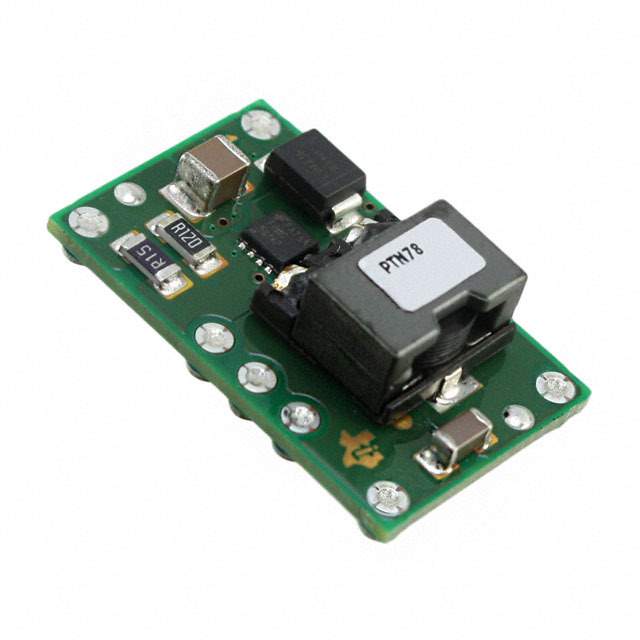

PTN78060WAZT Real Image
Same model may have multiple batches, images only for reference.

PTN78060WAZT

Part No PTN78060WAZT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW WIDE-VIN 3A ADJ HORZ SMD
Datasheet
PTN78060WAZT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN78060W
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 7V
Voltage - Input (Max) 36V
Voltage - Output 1 2.5 ~ 12.6 V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 7-SMD Module
Size / Dimension 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 38W
Win Source Part Number 004480-PTN78060WAZT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTN78060WAZT CAD Model

Description

Product PTN78060WAZT is a high-performance, integrated circuit (IC) from Texas Instruments, a global leader in semiconductor design and manufacturing.

  • Type: 3A, high-efficiency, step-down integrated switch regulator (ISR) module
  • Voltage: Offers adjustable output voltage
  • Input Voltage Range: From 14V to 40V
  • Efficiency: High efficiency, which can reach up to 96%
  • Thermal Performance: Excellent thermal performance
  • Protection: Over-temperature and under-voltage lockout protection
  • Package: Compact, surface-mount package
  • Operating Temperature Range: -40°C to 85°C
