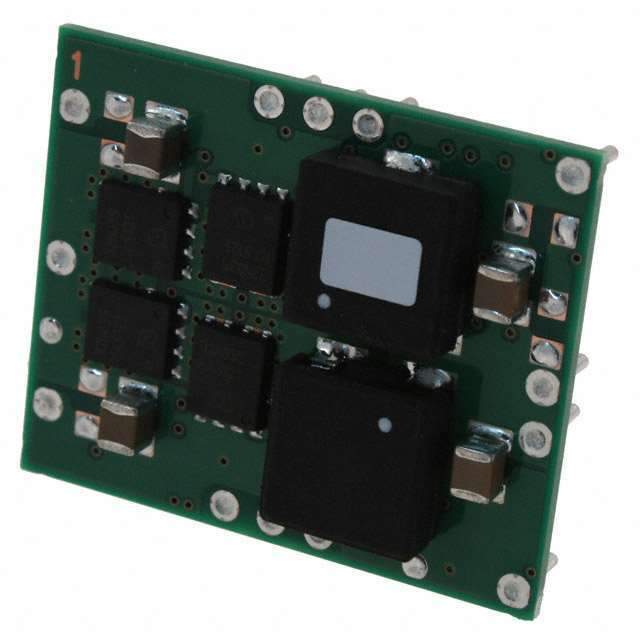

PTH12030WAH Real Image
Same model may have multiple batches, images only for reference.

PTH12030WAH

Part No PTH12030WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 26A HORZ T/H 13-DIP
Datasheet
PTH12030WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH12030
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.2V
Voltage - Input (Max) 13.8V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 26A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 13-DIP Module
Size / Dimension 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94.5%
Power (Watts) - Max 143W
Win Source Part Number 026957-PTH12030WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12030WAH CAD Model

Description

The PTH12030WAH is a high-performance, 12A rated, non-isolated power module part of the PTH series from Texas Instruments.

  • Input Voltage Range: 8V to 14V
  • Output Voltage: Precisely regulated from 0.8V to 5.5V (adjustable)
  • Efficiency: Up to 96% @ half load
  • Output ripple and noise: Low
  • Protection features: Over-temperature protection, output over-current protection, and input under-voltage lockout
  • Feature: Auto-Track sequencing
