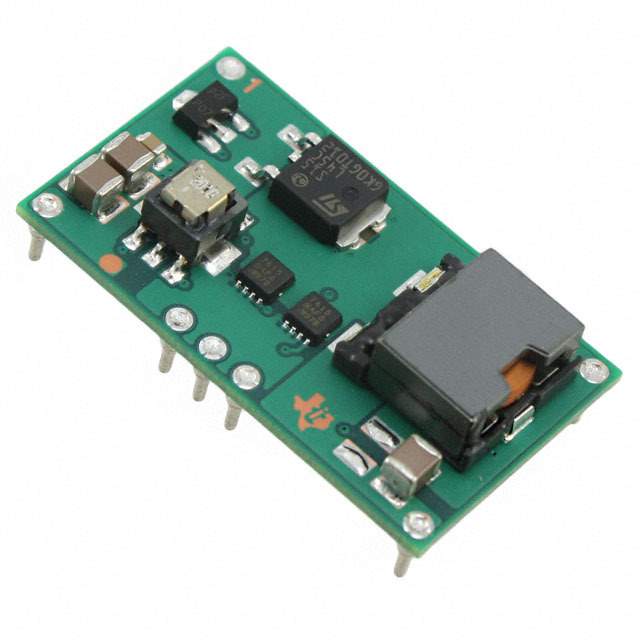

PTN78020WAH Real Image PTN78020WAH Real Image1 PTN78020WAH Real Image2 PTN78020WAH Real Image3 PTN78020WAH Real Image4
Same model may have multiple batches, images only for reference.
PTN78020WAH Real Image PTN78020WAH Real Image1 PTN78020WAH Real Image2 PTN78020WAH Real Image3 PTN78020WAH Real Image4
PTN78020WAH Real Image PTN78020WAH Real Image1 PTN78020WAH Real Image2 PTN78020WAH Real Image3 PTN78020WAH Real Image4
Same model may have multiple batches, images only for reference.

PTN78020WAH

Part No PTN78020WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 2.5-12.6V 6A HORZ T/H
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 20
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTN78020W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 7V
Voltage - Input (Max) 36V
Voltage - Output 1 2.5 ~ 12.6 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features With UVLO
Mounting Style Through Hole
Package 7-DIP Module
Size / Dimension 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 90W
Catalog PTN78020W Series
Win Source Part Number 085087-PTN78020WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial, Test & Measurement, Medical, Avionics
Ultra Librarian 3D Model Ultra Librarian PTN78020WAH CAD Model

Description

The PTN78020WAH is a high-performance, integrated circuit product from Texas Instruments, a leading company in the semiconductor industry known for its innovative and reliable products.

  • Type: High-efficiency, adjustable output, 3-terminal integrated switching regulators (ISRs)
  • Input Voltage Range: Wide-input voltage range (7.0 to 36 V)
  • Output Current: High output current of up to 6 A
  • Efficiency: Up to 96%
  • Output Voltage: Adjustable output voltage, which can be set from 2.5 V to 12.6 V
  • Protection features: Over-temperature protection and under-voltage lockout feature
  • Package: Compact, surface-mount power package
