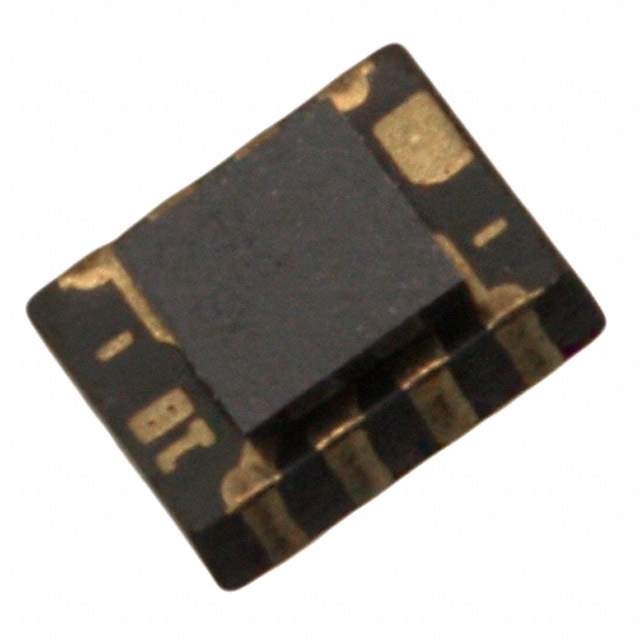

The Texas Instruments LMZ10500SILR is a nano module that integrates a DC/DC converter into a compact, easy-to-use package. Designed to deliver high performance with minimal external components, this power module is perfect for space-constrained applications.

Key Features

• Output Voltage Range: The LMZ10500SILR offers an adjustable output voltage range from 0.8V to 3.6V, allowing for flexibility in various applications.
• Input Voltage Range: This module supports an input voltage range of 2.7V to 5.5V, making it suitable for a wide array of power sources.
• High Efficiency: With an efficiency of up to 90%, the LMZ10500SILR ensures optimal power consumption, which is crucial for battery-powered devices.
• Output Current: It can deliver an output current of up to 650mA, catering to moderate power demands in compact electronics.
• Small Footprint: The nano module comes in a tiny 8-pin µSMD package, measuring just 2.5mm x 3mm x 1.2mm, saving valuable board space.
• Integrated Inductor: The built-in inductor simplifies design and enhances reliability by reducing the number of external components required.
• Thermal Performance: Excellent thermal performance is achieved through the use of a proprietary packaging technology.

Applications

The LMZ10500SILR is ideal for a range of applications, including but not limited to:

• Portable and battery-powered devices
• Wearable technology
• Medical devices
• Wireless communication modules
• Point-of-load conversions in networking and industrial systems

Additional Information

For further details, Texas Instruments provides comprehensive documentation, including datasheets, application notes, and design tools to assist engineers in implementing the LMZ10500SILR into their designs. The module is also supported by the TI E2E™ support forums, where experts are available to answer technical questions and provide guidance.
