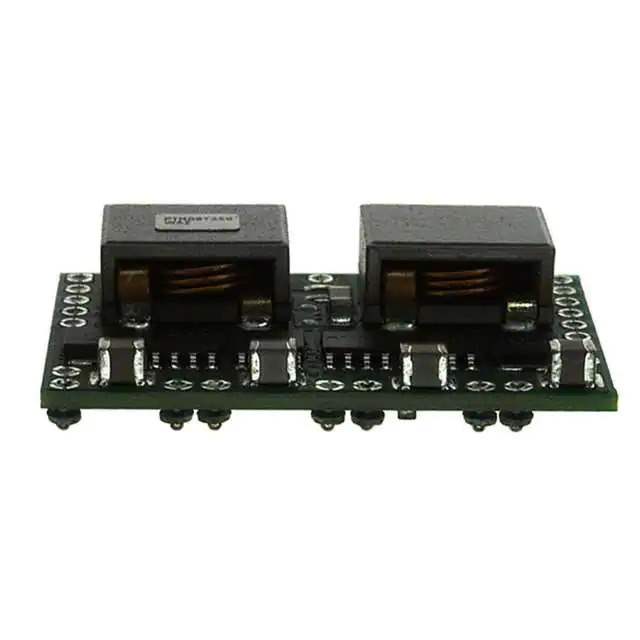

The PTH08T250WAZ is a high-performance, adjustable non-isolated power module from Texas Instruments. This state-of-the-art device offers the efficiency and flexibility that modern power systems require, with a wide input voltage range and a fully integrated solution that minimizes external components.

Key Features

• Wide Input Voltage Range: The module operates over an input voltage range of 4.5V to 14V, making it versatile for various applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.69V to 5.5V, allowing for use in a broad range of power supply configurations.
• High Efficiency: With an efficiency of up to 96%, the PTH08T250WAZ ensures minimal power loss and heat generation, which is crucial for maintaining system reliability.
• Integrated Inductor: The module includes an integrated inductor, offering a compact footprint and simplifying the design process.
• Output Current: It supports high output current up to 16 A, suitable for powering high-performance integrated circuits.
• Thermal Performance: Excellent thermal performance is achieved through the use of an over-molded lead-frame and an exposed thermal pad.
• Pre-Bias Startup: The device supports pre-bias startup, ensuring that the output voltage ramps up smoothly from an initial pre-biased condition.
• Auto-Track™ Sequencing: Texas Instruments' proprietary Auto-Track™ sequencing technology allows power supplies to track each other during power up and power down.

Applications

The PTH08T250WAZ is ideal for a wide range of applications, including:

• Telecommunications infrastructure
• Computing and storage systems
• Networking equipment
• Industrial systems

Quality and Reliability

As with all Texas Instruments products, the PTH08T250WAZ is designed to meet high standards of quality and reliability. It is RoHS compliant and is designed to meet the rigorous demands of commercial and industrial temperature ranges.
