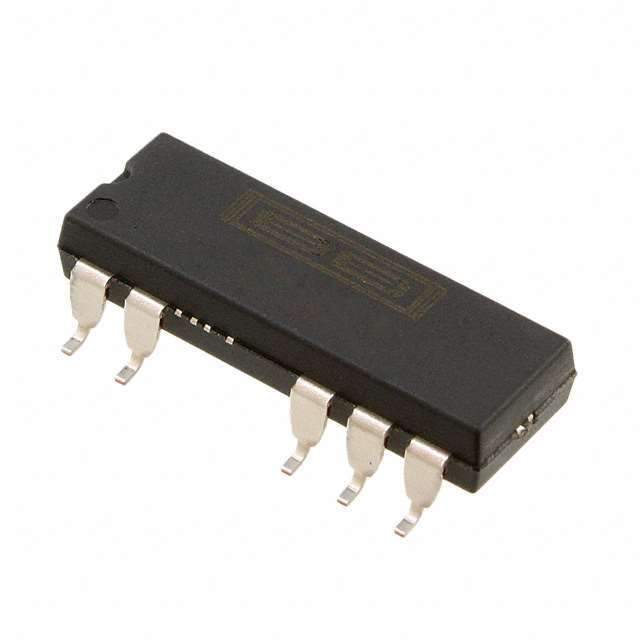

DCP010505BP-UG4 Real Image
Same model may have multiple batches, images only for reference.

DCP010505BP-UG4

Part No DCP010505BP-UG4
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 5V 0.2A 7SOP
Datasheet
DCP010505BP-UG4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Type Isolated Module
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 5.5V
Nominal Output Voltage 1 5V
Current - Output (Max) 200mA
Power (Watts) 1W
Isolation Voltage 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C to 100°C
Efficiency 80%
Mounting SMD (SMT)
Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Win Source Part Number 144681-DCP010505BP-UE4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP010505BP-UG4 CAD Model

Description

Overview of DCP010505BP-UG4

Featuring avant-garde technology, the DCP010505BP-UG4 ensures improved efficiency and reliability. It serves a critical function in leveraging power supplies specifically tailor-made for cutting-edge electronics applications.

Features and Benefits

  • Consistent 5V Output: Offers a reliable power supply suitable for sensitive electronics.
  • Compact Design: Easily fits within limited spaces, simplifying installation.
  • High Efficiency: Attains efficiencies of up to 75%, suitable for energy-conscious designs.
  • Galvanic Isolation: Prevents unintended current flow, enhancing safety levels.
  • Enhanced Durability: Resistant to harsh environmental conditions for extended use.

Applications

  • Consumer Electronics
  • Renewable Energy Systems
  • Precision Instruments
  • Security Systems
  • Scientific Equipment
