Products specifications

Category Power Supplies - Board Mount>DC DC Converters
Mfr Texas Instruments
Series PT6650
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 28V
Voltage - Output 1 3.3V
Current - Output (Max) 5A
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 14-SIP Module
Dimension 2.36" L x 0.42" W x 1.22" H (59.9mm x 10.7mm x 31.0mm)
Base Product Number PT6651
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names PT6651R-NDR,2156-PT6651R-TI,TEXTISPT6651R
Standard Package 12
Win Source Part Number 1023647-PT6651R
Ultra Librarian 3D Model Ultra Librarian PT6651R CAD Model

Description

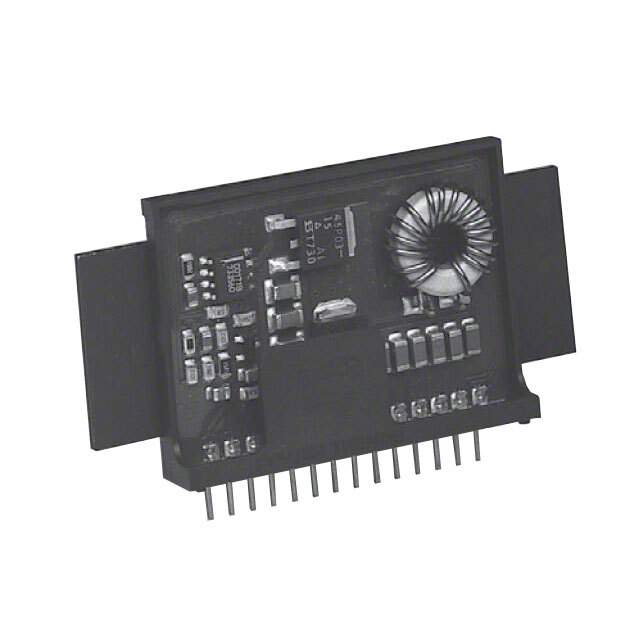

Introducing the PT6651R Series from Texas Instruments

The PT6651R series represents a line of high-performance, integrated power modules from the renowned electronics manufacturer Texas Instruments. These modules are specifically designed to deliver exceptional efficiency and reliability for a range of applications, including telecommunications, industrial systems, and computing infrastructures.

Key Features

  • Adjustable Output Voltage: The PT6651R series offers an adjustable output voltage feature, enabling customization for specific circuit requirements, which enhances the flexibility of the power module across various applications.
  • High-Efficiency Operation: With a focus on energy conservation, these modules are engineered for high-efficiency operation, which minimizes power loss and improves overall system performance.
  • Wide Input Voltage Range: The modules are designed to handle a broad input voltage range, making them suitable for diverse power supply conditions and ensuring consistent operation even under fluctuating power inputs.
  • Thermal Protection: Built-in thermal protection safeguards the module from overheating, thereby ensuring long-term reliability and extending the lifespan of the product.
  • Compact Size: The PT6651R series comes in a compact package, which is ideal for space-constrained applications without compromising on power or efficiency.

Applications

The versatility of the PT6651R series makes it an excellent choice for a variety of applications. It is particularly well-suited for:

  • Telecommunication equipment
  • Industrial control systems
  • Network infrastructure
  • Portable devices
  • Computing and data storage systems

Product Specifications

The PT6651R series boasts a comprehensive set of specifications tailored to meet the demands of modern electronic systems. Some of the key specifications include:

  • Input voltage range
  • Output voltage options
  • Efficiency ratings
  • Operating temperature range
  • Package type and dimensions

For detailed technical data and application notes, customers are encouraged to consult the official Texas Instruments datasheets and product guides.

The Texas Instruments PT6651R series is more than just a power module; it's a robust, efficient, and reliable solution designed to power the next generation of electronic innovations.
