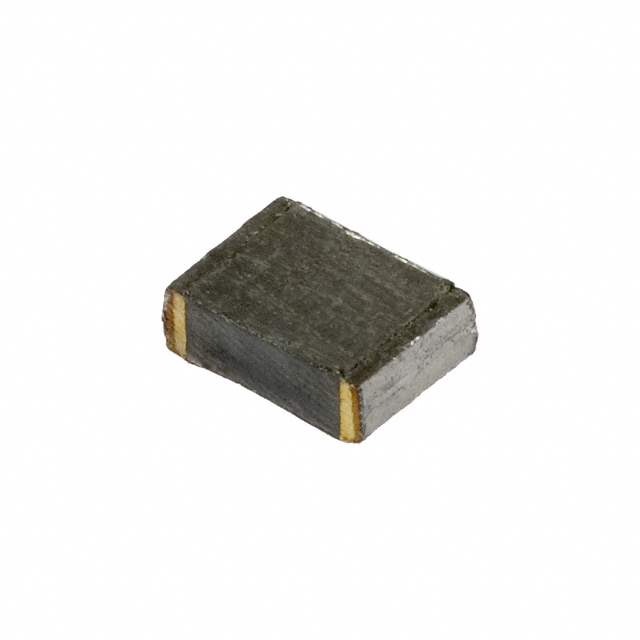

Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.022μF
Tolerance ±2%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000897-ECH-U1H223GB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H223GB5 CAD Model

Description

The ECH-U1H223GB5 capacitor is an optimal choice for high-density electronic applications. Known for its impressive capacitance and robust performance, this component facilitates the seamless operation of various high-performance systems.

Applications

  • Energy management systems
  • High-efficiency inverters
  • IoT devices
  • Data communication networks

Features and Benefits

  • High Density: Supports applications with limited space but high performance requirements.
  • Durable Construction: Suitable for high-stress applications.
  • Consistent Performance: Delivers stable performance under variable operational conditions.
  • Regulation-compliant Design: Adheres to global electronic standards for environmentally conscious manufacturing.

Additional Details

The ECH-U1H223GB5 leverages advanced material technology, making it particularly valuable for cutting-edge electronic systems that demand consistent power and reliability. It presents an excellent solution for designers looking to enhance efficiency and sustainability in complex electronic environments.
