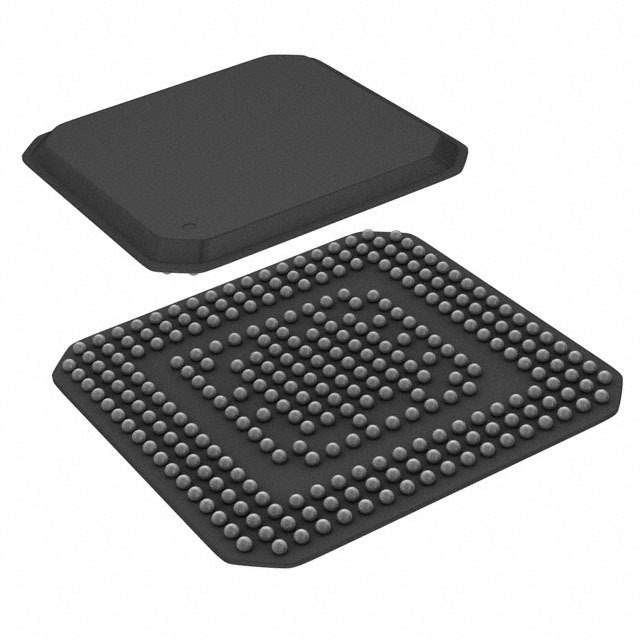

PCI6420GHK Real Image
Same model may have multiple batches, images only for reference.

PCI6420GHK

Part No PCI6420GHK
Manufacturer Texas Instruments
Catalog Interface - Controllers
Description IC 2SLT PC CARD/SC CTLR 288-BGA
Datasheet
PCI6420GHK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Protocol PCI CardBus
Purpose Controller
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating 0°C to 70°C
Case / Package 288-BGA Microstar (16x16)
Win Source Part Number 026519-PCI6420GHK
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCI6420GHK CAD Model

Description

The PCI6420GHK from Texas Instruments is a high-performing, innovative device that is designed to enhance the functionality and performance of various systems.

  • Product Type: PCI-to-PCI Bridge device
  • Function: Designed to offer a seamless connection between a PCI bus and secondary buses
  • Data Transfer: Designed to support a data transfer rate of up to 66 MHz
  • Flexibility: Designed to support a wide range of bus widths
  • Reliability: Designed with robust error detection and correction capabilities
  • Compatibility: Designed to be compatible with a wide range of systems and devices
