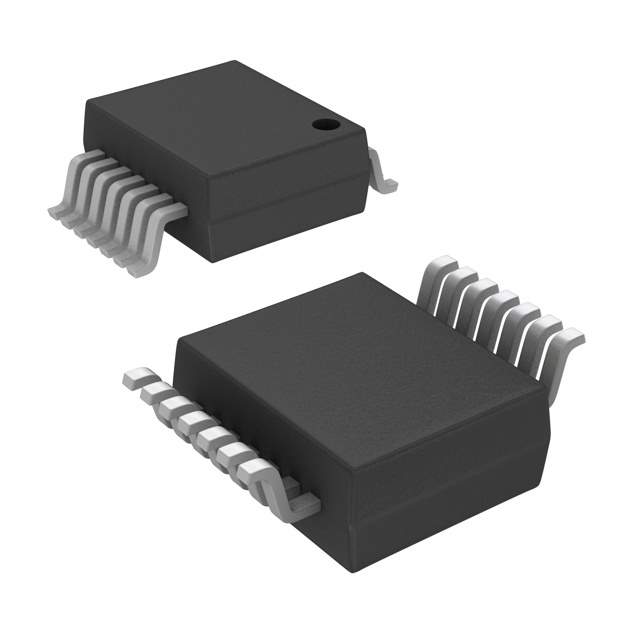

PCA9534DGVR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of I/O 8
Interrupt Output Yes
Features POR
Output Type Push-Pull
Current - Output Source/Sink 10mA, 25mA
Max Frequency 400kHz
Supply Voltage - Operating 2.3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-TVSOP
Win Source Part Number 143644-PCA9534DGVR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCA9534DGVR CAD Model

Description

The PCA9534DGVR from Texas Instruments is a sophisticated, high-performance I/O expander that offers a wide range of functionalities.

  • Product: PCA9534DGVR
  • Manufacturer: Texas Instruments
  • Type: PCA953x family of I²C-bus/SMBus, low-power CMOS 8-bit GPIO expanders
  • Package: Compact TSSOP package
  • Feature: Low standby current consumption
  • Power Supply Range: 2.3V to 5.5V
  • Feature: Interrupt output
  • Feature: Supports both hot insertion and hot removal
  • Feature: Active LOW reset input (RESET)
  • Protocol: Uses the I²C-bus/SMBus protocol, which supports data transfer rates up to 1 Mbit/s
  • Compliance: Compliant with the SMBus alert response
