The OPA2141AIDGKR from Texas Instruments is a high-performance, low-power operational amplifier designed for a wide range of applications. This precision op-amp is part of the OPAx141 family of devices that offer rail-to-rail output swing, which is crucial for maximizing dynamic range in low-voltage applications.

Key Features

• Low Offset Voltage: The device boasts a low input offset voltage, which enhances accuracy in precision measurement applications.
• Wide Supply Range: It operates from a single supply voltage of 4.5V to 36V or a dual supply of ±2.25V to ±18V, providing flexibility in various circuit configurations.
• Low Noise: With a low voltage noise density, the OPA2141AIDGKR is ideal for applications that require minimal signal distortion and high signal-to-noise ratio.
• High Common-Mode Rejection Ratio (CMRR): The high CMRR ensures that the accuracy of the amplifier is maintained even in the presence of common-mode signals.
• Wide Bandwidth: It offers a bandwidth of 11MHz, which is suitable for high-speed filtering and signal processing tasks.

Applications

The OPA2141AIDGKR is versatile and can be used in a variety of applications, including:

• Audio equipment
• Data acquisition systems
• Process control
• Medical instrumentation
• Active filters
• Test and measurement equipment

Package and Quality

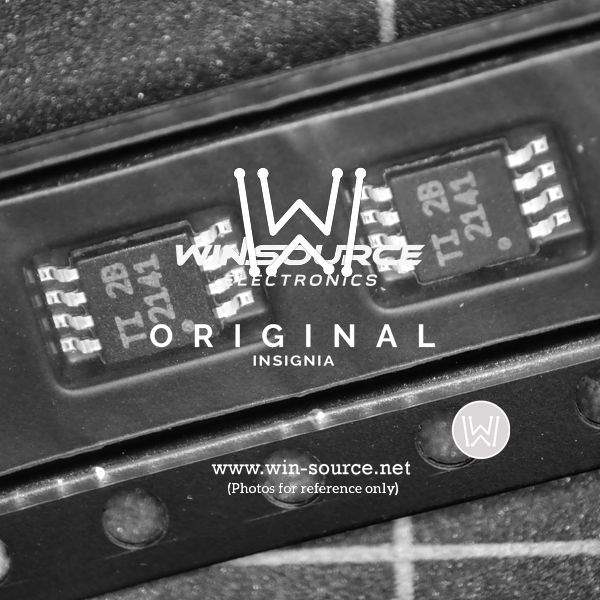

The device comes in a compact 8-pin MSOP package (DGS) and is specified over the extended industrial temperature range of -40°C to 125°C. The OPA2141AIDGKR is RoHS compliant and is designed to meet the stringent quality standards set by Texas Instruments, ensuring reliability and performance for critical applications.

Conclusion

With its combination of features, the OPA2141AIDGKR operational amplifier from Texas Instruments stands out as a robust solution for designers who require precision, low power consumption, and wide bandwidth. Whether used in professional audio, sensor amplification, or any other precision analog circuitry, this op-amp is engineered to deliver superior performance.
