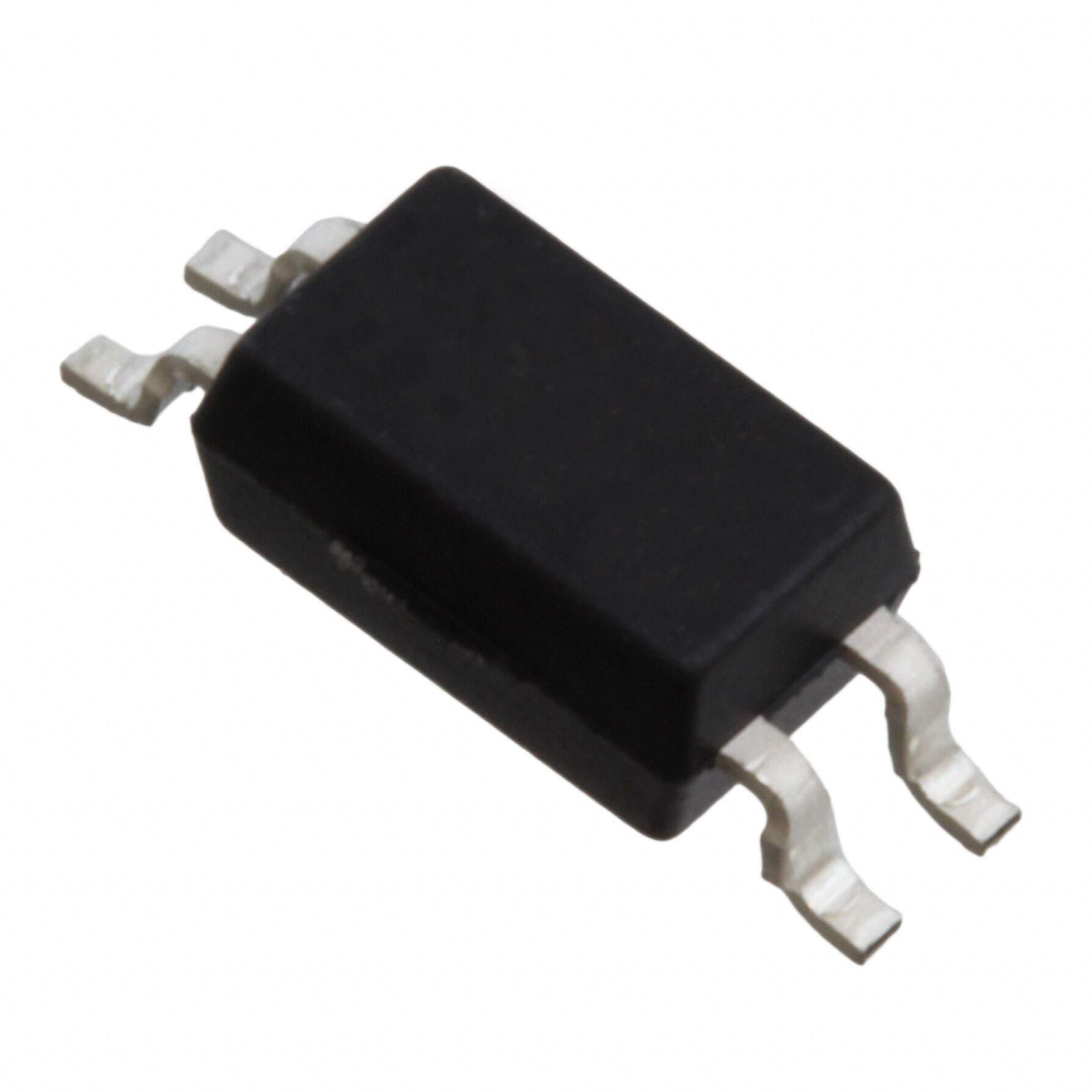

VOS628A-2X001T Real Image
Same model may have multiple batches, images only for reference.

VOS628A-2X001T

Part No VOS628A-2X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SSOP  /  Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
Datasheet
VOS628A-2X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 63% @ 1mA
Current Transfer Ratio (Max) 125% @ 1mA
Turn On / Turn Off Time (Typ) 5µs, 8µs
Rise / Fall Time (Typ) 5µs, 7µs
Input Type AC, DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-SSOP
Base Product Number VOS628
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names VOS628A-2X001T-ND,VOS628A-2X001TCT,VOS628A-2X001TDKR,VOS628A-2X001TTR
Standard Package 3,000
Win Source Part Number 1104023-VOS628A-2X001T
Ultra Librarian 3D Model Ultra Librarian VOS628A-2X001T CAD Model

Description

The VOS628A-2X001T is an optoisolator from Vishay Semiconductor Opto Division.

  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio: 63% @ 1mA
  • Rise/Fall Time: 5μs and 7μs respectively
  • Current Output/Channel: 50mA
  • Maximum Voltage Output: 80V
  • Type: Transistor
  • Input Type: AC and DC
  • Voltage Forward: 1.1V
  • Current DC Forward (If): 50mA
  • Temperature Range: -55°C to 110°C
  • Compliance: EAR99 compliant
