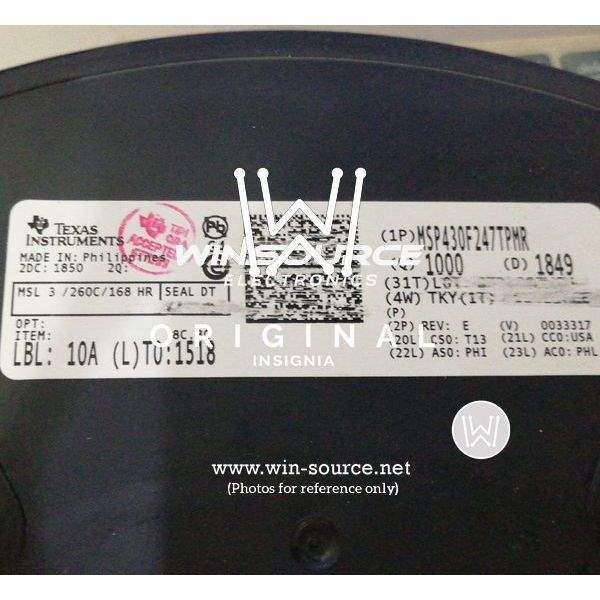

MSP430F247TPMR Texas Instruments MSP430F247TPMR Real Image MSP430F247TPMR label picture MSP430F247TPMR label picture 2
Same model may have multiple batches, images only for reference.
MSP430F247TPMR Texas Instruments MSP430F247TPMR Real Image MSP430F247TPMR label picture MSP430F247TPMR label picture 2
MSP430F247TPMR Texas Instruments MSP430F247TPMR Real Image MSP430F247TPMR label picture MSP430F247TPMR label picture 2
Same model may have multiple batches, images only for reference.

MSP430F247TPMR

Part No MSP430F247TPMR
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 64LQFP
Datasheet
MSP430F247TPMR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor MSP430
Part Core Size 16-Bit
Speed(Frequency) 16MHz
Number of I/O 48
Program Memory Size 32KB (32K x 8 + 256B)
Program Memory Type FLASH
Data RAM Size 4K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x12b
Temperature Range - Operating -40°C to 105°C (TA)
Case / Package 64-LQFP (10x10)
Win Source Part Number 024466-MSP430F247TPMR
Family Name MSP430F247
Introduction Date March 31, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MSP430F247TPMR CAD Model

Description

The MSP430F247TPMR is a highly advanced microcontroller product from the globally recognized electronics company, Texas Instruments.

  • CPU: 16-bit RISC CPU
  • Registers: 16-bit registers
  • System Frequency: Up to 16 MHz
  • Flash memory: 32KB
  • RAM: 4KB
  • Voltage Range: 1.8V to 3.6V
  • ADC: 12-bit A/D converter
  • Communication Interfaces: two universal serial communication interfaces
  • Package: LQFP (Low-profile Quad Flat Package) with 64 pins
