Overview of the MSP430F147IRTDT Microcontroller

The MSP430F147IRTDT is a highly integrated microcontroller (MCU) from Texas Instruments designed for low-power and high-performance applications. This MCU is part of the MSP430 family, which is renowned for its exceptional power efficiency and versatile feature set. It is an ideal solution for a wide range of applications, including industrial control systems, portable devices, and sensor monitoring systems.

Key Features

• 16-Bit RISC Architecture: The MSP430 core is a 16-bit RISC processor that delivers powerful computing capabilities while maintaining low power consumption.
• Flexible Clock System: The device includes a flexible clock system with multiple frequency options, supporting a variety of low-power modes to optimize energy usage.
• Integrated Peripherals: The MSP430F147IRTDT comes with a rich set of peripherals, including a 12-bit analog-to-digital converter (ADC), two universal serial communication interfaces (USART), and a versatile 16-bit timer.
• Memory: It offers 32KB of flash memory and 1KB of RAM, providing ample space for application code and data storage.
• Supply Voltage: The operating voltage range is from 1.8V to 3.6V, accommodating a variety of power sources and ensuring compatibility with battery-operated devices.

Advanced Power Management

The MSP430F147IRTDT excels in power management, featuring several low-power modes that significantly reduce energy consumption when the MCU is idle or performing minimal tasks. This capability allows for extended battery life in portable applications and reduces power costs in stationary applications.

Package and Temperature Range

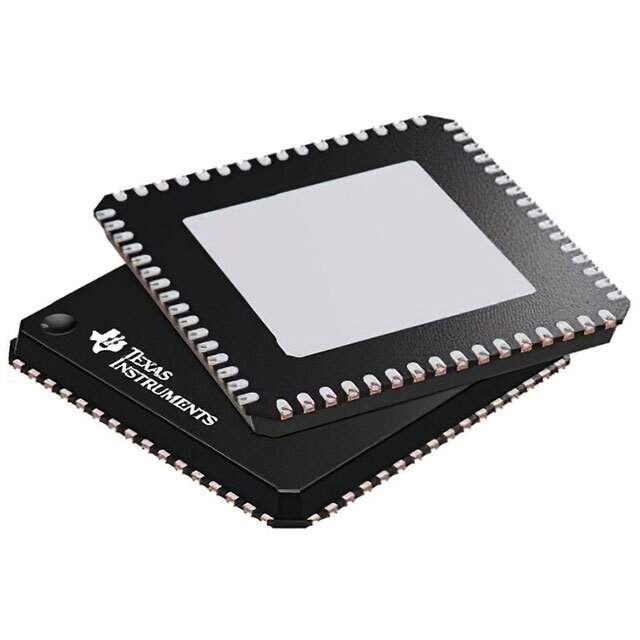

This microcontroller is offered in a 64-pin QFN (Quad Flat No-leads) package, providing a compact footprint for space-constrained applications. It is designed to operate over an industrial temperature range, ensuring reliable performance under varying environmental conditions.

Development Support

Developers can take advantage of Texas Instruments' comprehensive set of development tools for the MSP430 family, including the Code Composer Studio integrated development environment (IDE) and a wide range of development kits and reference designs. This support accelerates the design process and helps bring products to market faster.

In summary, the MSP430F147IRTDT microcontroller from Texas Instruments is a powerful and energy-efficient solution suitable for a multitude of applications that require robust performance and low power consumption.
