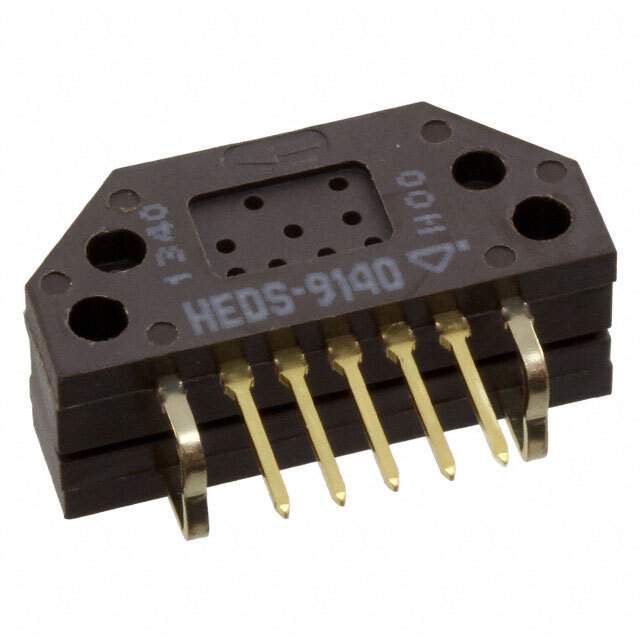

Part No HEDS-9140#H00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 3CH 400CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 400CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 400
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775889-HEDS-9140#H00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9140
Introduction Date May 31, 2005
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9140#H00 CAD Model

Description

The Broadcom Limited 775889-HEDS-9140#H00 is an electronic component that was introduced on May 31, 2005.

  • Category: Sensors, transducers
  • ECCN: EAR99
  • Country of Origin: Malaysia
  • Termination Style: Terminal pins
  • Orientation: Vertical
  • Mounting: Chassis mount
  • Output Type: Quadrature with index (incremental)
  • Operating Supply Voltage: 5V
  • Encoder Type: Optical
  • Pulses Per Revolution: 400
