Products specifications

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Tape and Reel
Status Obsolete
Frequency 450MHz ~ 2GHz
RF Type Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA
Input Range -30dBm ~ 0dBm
Accuracy ±1dB
Supply Voltage (V) 2.7V ~ 5V
Supply Current 8mA

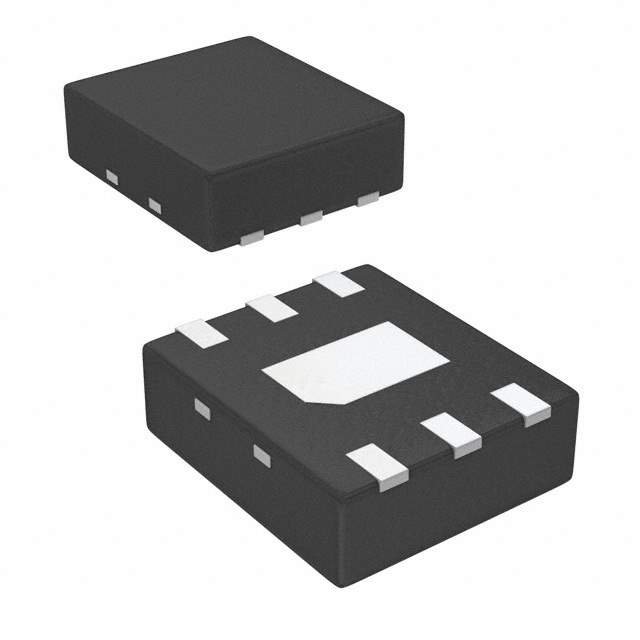

Manufacturer Package 6-WDFN Exposed Pad
Supplier Device Package 6-WSON (2.5x2.2)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1202050-LMV225SD
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMV225SD CAD Model

Description

The LMV225SD from Texas Instruments is a highly accurate RF power detector, perfect for applications that require precise power measurements. This device is designed to provide an easy and efficient solution for power detection over a wide frequency range from 450 MHz to 2 GHz. It is an ideal choice for a variety of wireless applications, including mobile phones, data cards, and wireless infrastructure.

The LMV225SD operates by converting an RF input signal to a DC output voltage, which is proportional to the log of the input power, providing a dynamic range of 30 dB. This allows for the detection of both low-level and high-level signals with high accuracy. The linear-in-dB response makes it simple to use in RF power monitoring and control systems without complex calculations.

One of the key features of the LMV225SD is its ability to operate with a single supply voltage ranging from 2.7V to 5.5V, which makes it versatile for different circuit designs. Moreover, its low power consumption makes it suitable for battery-powered devices where power efficiency is crucial.

The device comes in a compact, surface-mount, 6-pin SC-70 package, which is ideal for space-constrained applications. The small footprint does not compromise its performance, as it is designed to maintain high accuracy and temperature stability across its full operating range.

Integration of the LMV225SD into a system is made easier with its simple application circuit, requiring minimal external components. This not only saves on additional component costs but also reduces the complexity of the design, speeding up time-to-market for products utilizing this power detector.

With its combination of high accuracy, wide frequency range, and ease of use, the LMV225SD from Texas Instruments stands out as a superior choice for designers looking to implement RF power detection in their systems.
