The LMH2120UMX is a high-performance RF power detector by Texas Instruments, designed to offer precise and reliable measurement of RF power in communication systems. This versatile component is ideal for applications such as power amplifier control, transmitter power monitoring, and antenna alignment in a wide range of wireless devices.

Key Features:

• Frequency Range: The LMH2120UMX operates over a wide frequency range from 50 MHz to 8 GHz, making it suitable for various communication protocols including GSM, CDMA, WCDMA, LTE, and Wi-Fi.
• Dynamic Range: It boasts a dynamic range of 40 dB, ensuring accurate power detection from low-level signals to high-power transmission.

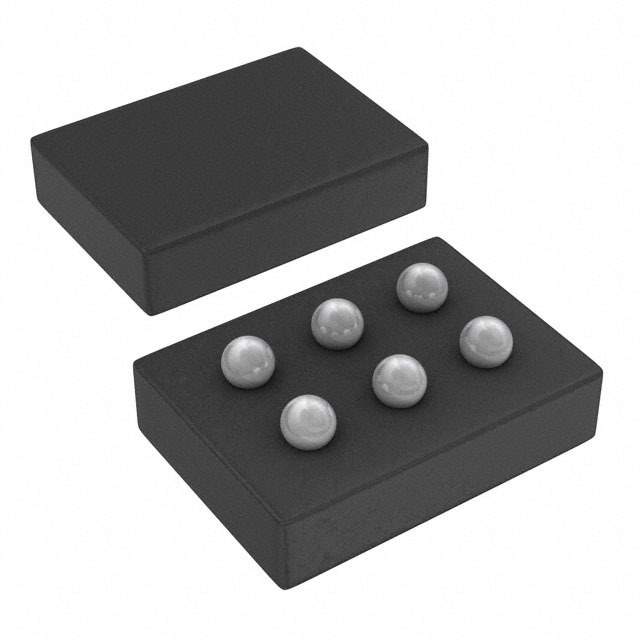

• Package: Housed in an ultra-small, leadless 6-pin UMX package, the LMH2120UMX is optimized for space-constrained applications.
• Temperature Range: Operational over a temperature range of -40°C to 85°C, it is reliable in a variety of environmental conditions.
• Power Supply: The device supports a supply voltage range of 2.7V to 5V, providing flexibility in power design.
• Linear Output: It provides a linear-in-dB output voltage that is directly proportional to the input power in dBm, simplifying the system design and integration process.

Applications:

• Wireless infrastructure (base stations, repeaters)
• RF Power amplifier control loops
• Transmitter power monitoring
• Antenna alignment and VSWR monitoring
• Portable wireless devices

The LMH2120UMX from Texas Instruments is a testament to the company's commitment to providing innovative, high-quality components for the RF and wireless industries. With its precise power detection capabilities and robust design, it is an essential building block for modern RF systems that require reliable and accurate power measurement.
