Products specifications

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tape and Reel
Status Obsolete
Type Class D
Output Type 1-Channel (Mono)
Max Output Power x Channels at Load 3W x 1 at 4Ohm
Supply Voltage (V) 2.4V ~ 5.5V
Features Depop, Differential Inputs, Short-Circuit Protection, Shutdown
Mounting Style SMD
Temperature Range - Operating -40°C ~ 85°C
Supplier Device Package 9-uSMD
Manufacturer Package 9-WFBGA
Family Part Number LM4670
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1199936-LM4670ITL
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM4670ITL CAD Model

Description

The LM4670ITL is a high-performance audio amplifier from the reputable semiconductor manufacturer, Texas Instruments. Designed for portable and space-constrained applications, this amplifier is a part of TI's extensive range of audio solutions that deliver high-quality sound reproduction with minimal power consumption.

Key Features

  • Output Power: The LM4670ITL is capable of delivering 2.5W of continuous average power to a 4Ω load with less than 10% Total Harmonic Distortion plus Noise (THD+N) from a 5V power supply, making it ideal for mobile phones, tablets, and other personal electronics that demand quality audio output.
  • Efficiency: This amplifier is designed with TI's state-of-the-art 3D enhancement process, which significantly improves efficiency, reducing the need for heat sinks and allowing for a more compact design.

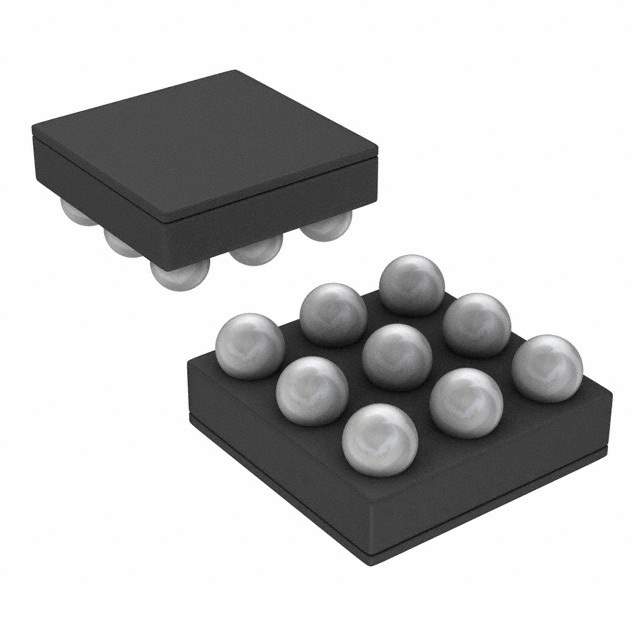

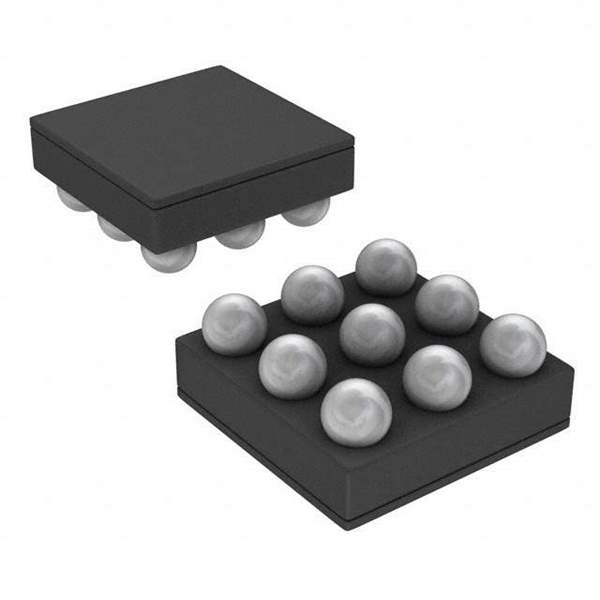

  • Space-Saving Design: The LM4670ITL comes in a tiny 9-bump micro SMD package, making it perfect for applications where space is at a premium.
  • Advanced Features: It includes features such as a low-power shutdown mode, thermal shutdown protection, and an externally controlled gain with minimal external components required.

Applications

The LM4670ITL is versatile and can be used in a variety of applications. It is particularly well-suited for:

  • Mobile Phones
  • Portable Media Players
  • Tablet Devices
  • Handheld Gaming Devices
  • GPS Devices
  • Other Battery-powered Devices

Technical Specifications

The amplifier operates over a wide power supply range from 2.4V to 5.5V, which allows for flexible integration into various system designs. It also features a low quiescent current and a fast start-up time of only 15ms, ensuring prompt response to audio playback commands.

Conclusion

In summary, the LM4670ITL from Texas Instruments is a powerful, efficient, and compact audio amplifier that provides excellent sound quality for a wide range of portable applications. Its advanced features and minimal external component requirement make it a top choice for designers looking to enhance the audio experience in their products.
