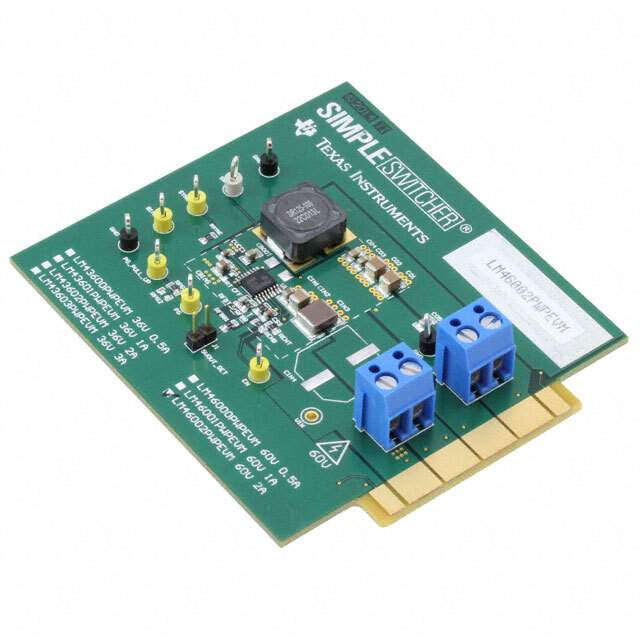

Product Overview: Texas Instruments LM46002PWPEVM

The LM46002PWPEVM is an evaluation module (EVM) designed by Texas Instruments (TI) to showcase the capabilities and robust performance of the LM46002 regulator, a highly efficient, synchronous buck (step-down) voltage converter. This EVM provides engineers, designers, and hobbyists a convenient platform to test and evaluate the LM46002's features in a real-world application scenario.

The LM46002 regulator integrated into the EVM is capable of delivering up to 2A of continuous output current. It operates over an input voltage range of 3.5V to 60V, which makes it suitable for a wide array of applications, including industrial, automotive, and telecommunications power systems. The adjustable output voltage range from 0.6V to 7V allows for great flexibility in matching the power requirements of various downstream components.

The EVM is equipped with a number of test points and jumper settings, enabling users to easily configure and monitor the performance of the LM46002 regulator. Key features such as the switching frequency, which can be programmed from 100kHz to 2.2MHz, and the soft-start time, can be adjusted to suit specific application needs. The high-frequency operation of the LM46002 allows for the use of small surface-mount inductors and capacitors, resulting in a compact power supply solution with excellent power density.

Safety and protection features are built into the LM46002PWPEVM, including thermal shutdown, undervoltage lockout, and overcurrent protection, ensuring reliable operation under various conditions. Additionally, the EVM demonstrates the regulator's high efficiency and low quiescent current, which contribute to energy savings and extended battery life in battery-powered applications.

The LM46002PWPEVM is an essential tool for engineers looking to quickly prototype and test their power supply designs. It comes with a user-friendly guide that includes schematic diagrams, bill of materials, and layout recommendations, providing a comprehensive resource for accelerating the design process.

Texas Instruments' commitment to quality and performance is evident in the LM46002PWPEVM, making it an excellent choice for those in need of a reliable and versatile step-down voltage conversion solution.
