The LM3642TLE-LT from Texas Instruments is a highly versatile and efficient dual-LED flash driver that provides a robust solution for mobile phones, digital cameras, and other portable devices requiring an integrated flash function. This compact, integrated circuit is designed to drive LEDs with high precision, ensuring optimal performance for photo and video illumination.

Key Features

• Adjustable Output: The LM3642TLE-LT offers an adjustable output current that can be configured via an I2C-compatible interface, allowing for precise control over the brightness of the LED flash.
• Torch and Flash Modes: It supports both torch and flash modes, catering to different lighting requirements, whether it's for constant illumination or a high-intensity flash.
• Synchronization Capabilities: This device can synchronize with camera shutter and exposure functions, providing seamless integration with the host system's camera module.
• High Efficiency: With an integrated 2MHz fixed-frequency synchronous boost converter, the LM3642TLE-LT ensures efficient power conversion, extending battery life in portable applications.

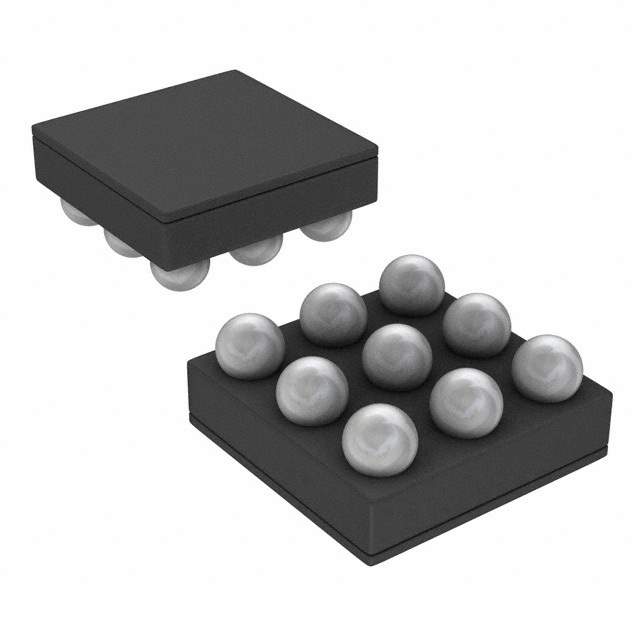

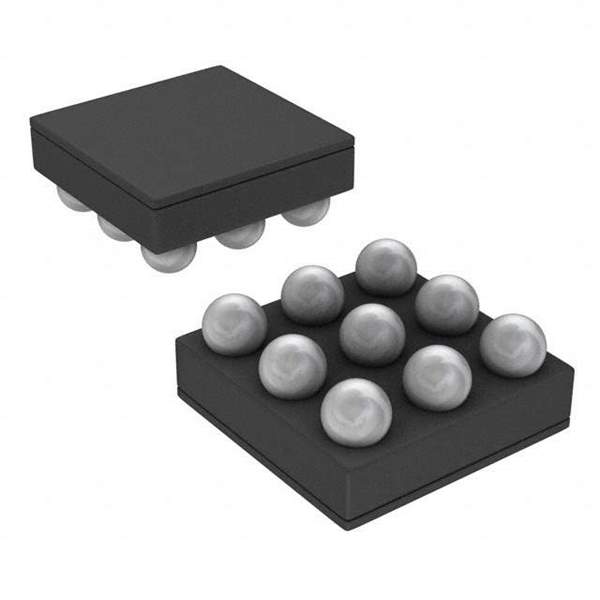

• Compact Package: The product comes in a small, 12-bump DSBGA package, which is ideal for space-constrained applications.
• Protection Features: It includes over-voltage, over-temperature, and LED fault protection, ensuring safe and reliable operation under various conditions.

Applications

The LM3642TLE-LT is suitable for a wide range of applications, including but not limited to:

• Smartphone and tablet LED flash
• Portable camera and video camera lighting
• Emergency lighting and signaling
• General LED lighting applications

Technical Specifications

This flash driver operates over a wide input voltage range of 2.7V to 5.5V and can deliver up to 1.5A of flash current. The I2C-compatible interface allows for easy integration with a microcontroller or processor, providing a flexible and programmable lighting solution.

In conclusion, the LM3642TLE-LT from Texas Instruments represents a state-of-the-art solution for portable lighting applications, offering a blend of performance, efficiency, and compactness that is hard to match.
