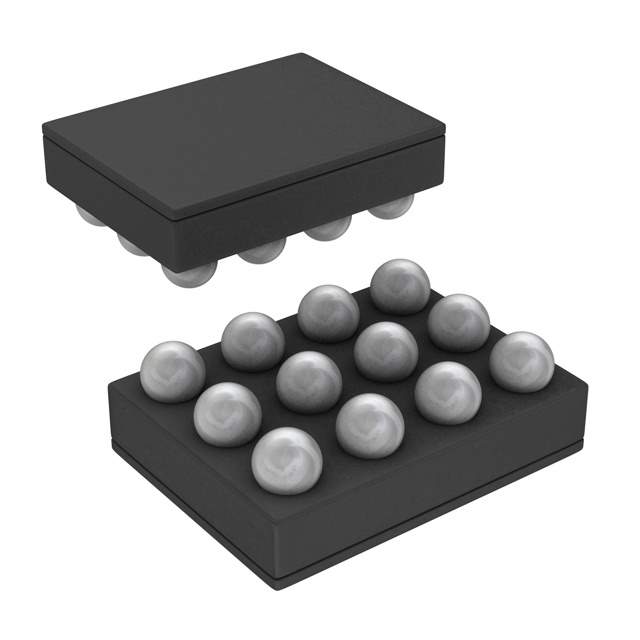

LM3630ATME Real Image
Same model may have multiple batches, images only for reference.

LM3630ATME

Part No LM3630ATME
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet
LM3630ATME Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.3V
Maximum Supply Voltage 5.5V
Channel Output Current 28.5mA
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 071283-LM3630ATME
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3630ATME CAD Model

Description

The LM3630ATME is a high-performance, dual-display white LED driver designed and manufactured by Texas Instruments, a globally recognized leader in electronic component solutions.

  • Input Voltage Range: 2.7V to 19V
  • LED Strings: Two independently controlled LED strings
  • LEDs per String: Up to 11 LEDs in series
  • Efficiency: High efficiency
  • Converter: Boost converter
  • Dimming: Linear or exponential methods
  • Feature: Integrated over-voltage protection circuit
  • Feature: Thermal shutdown feature
  • Package: Tiny 12-bump DSBGA package
  • Interface: I2C compatible interface
