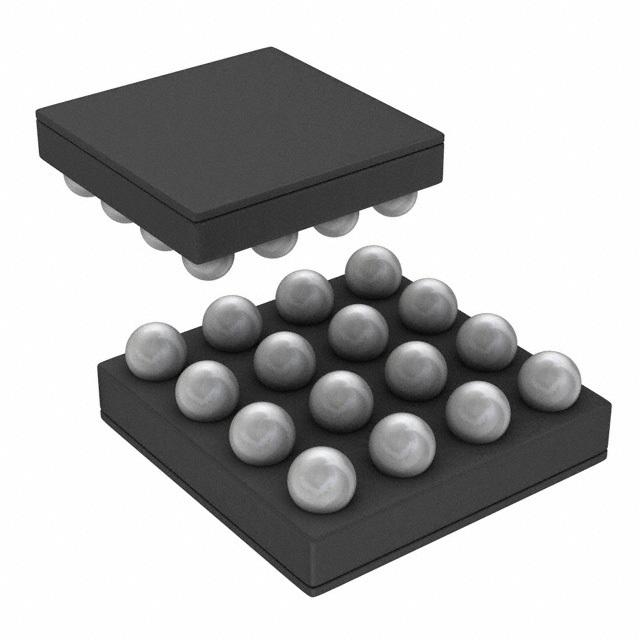

LM3559TLE/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM3559TLE/NOPB

Part No LM3559TLE/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 16USMD
Datasheet
LM3559TLE/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Output Voltage 5V
Channel Output Current 900mA (Flash)
Frequency 2MHz
Dimming I2C
Applications Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-uSMD
Win Source Part Number 002556-LM3559TLE/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3559TLE/NOPB CAD Model

Description

The LM3559TLE/NOPB is a high-performance, advanced LED flash driver product from the globally renowned technology company, Texas Instruments.

  • Supply Voltage: Operates from a supply voltage range of 2.7V to 5.5V.
  • Current Regulation: Capable of driving up to 1.2A load with fixed current regulation.
  • LED Brightness Control: Incorporates a 128-level logarithmic LED brightness control.
  • Interface: I2C compatible interface.
  • TX Mask Feature: Reduces the flash current during RF transmission.
  • Package: 12-bump, lead-free DSBGA package.
  • Safety and Protection: Includes thermal protection and short-circuit protection.
