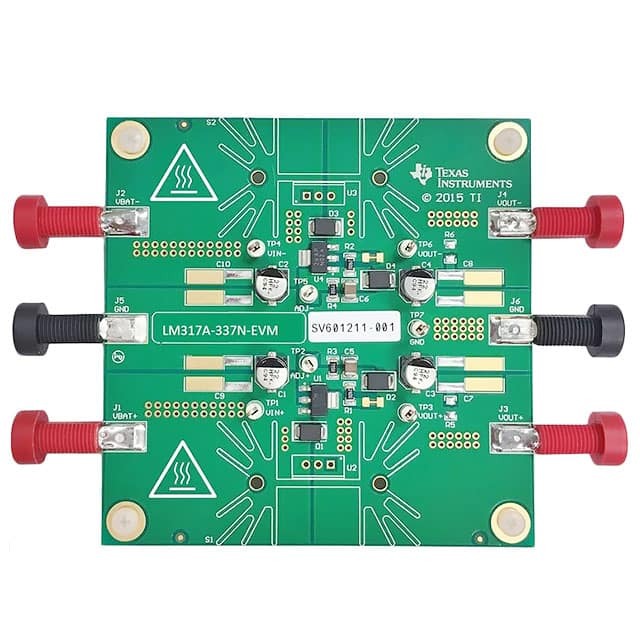

The LM317A-337N-EVM is a comprehensive evaluation module (EVM) designed by Texas Instruments to facilitate the testing and performance evaluation of its LM317A and LM337N voltage regulators. These regulators are widely recognized for their reliability and versatility in various applications, including power supplies and instrumentation.

Key Features

• Adjustable Output Voltage: The LM317A (positive voltage regulator) and LM337N (negative voltage regulator) provide an adjustable output voltage range from 1.25V to 37V with a maximum output current of 1.5A.
• Thermal Overload Protection: Built-in thermal overload protection safeguards the device from damage that can occur due to excessive heat.
• Current Limiting: Integrated current limiting features protect the EVM and the end application from short-circuit conditions and excessive power draw.
• High Efficiency: The regulators are designed to maintain high efficiency across a wide range of operating conditions, making them suitable for energy-sensitive applications.

Applications

The LM317A-337N-EVM is ideal for a multitude of applications, including but not limited to:

• Power Supply Design
• Battery Chargers
• Laboratory Equipment
• Automotive Electronics
• LED Drivers

Design and Ease of Use

The EVM is designed with convenience in mind, featuring a user-friendly layout that allows for quick setup and easy access to all test points. The onboard potentiometers enable fine-tuning of the output voltage, providing designers with a high degree of control over their power regulation needs.

Support and Resources

Texas Instruments provides extensive support and resources for the LM317A-337N-EVM, including detailed datasheets, application notes, and design simulators. This ensures that engineers have all the necessary tools at their disposal to successfully integrate the EVM into their projects.
