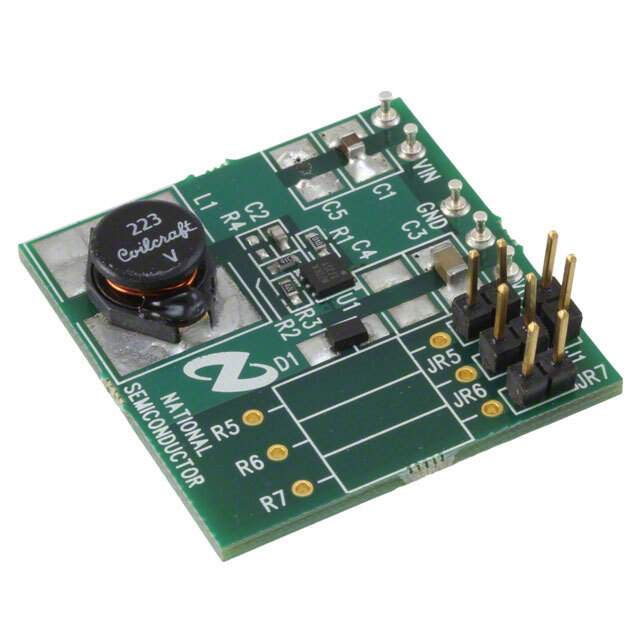

The LM2735XSDEVAL from Texas Instruments is a compact, high-performance evaluation board designed for testing and prototyping with the LM2735XSD switching regulator. This evaluation tool is tailored for engineers, designers, and hobbyists to assess the capabilities of the LM2735XSD, a small, high-frequency step-down DC/DC converter.

Key Features

• High-Efficiency Converter: The LM2735XSD is capable of delivering a continuous load current of up to 1A with excellent power conversion efficiency, making it suitable for battery-powered and low-power applications.
• Adjustable Output Voltage: Users can configure the output voltage from 1.225V to 20V, providing flexibility for a wide range of applications.
• High Switching Frequency: Operating at a fixed frequency of 1.6 MHz, the regulator allows for the use of small surface-mount inductors and capacitors, minimizing the solution size and the associated costs.
• Thermal Shutdown: The evaluation board includes thermal shutdown protection to safeguard the circuitry under extreme operating conditions.
• Current Overload Protection: Built-in current overload protection ensures that the device and the prototype remain safe during accidental overcurrent events.

Applications

The LM2735XSDEVAL is versatile and can be used in a variety of applications, including:

• Portable and battery-powered devices
• Wireless and DSL modems
• Set-top boxes
• Point-of-load conversions for distributed power architectures

Easy to Use

Designed with simplicity in mind, the evaluation board requires minimal external components to get started. It features convenient test points for easy probing and evaluation of the LM2735XSD's performance. The board's layout is optimized to facilitate straightforward integration into existing systems or for use as a standalone evaluation platform.

Package Contents

The LM2735XSDEVAL package includes the evaluation board itself along with comprehensive documentation, including a user guide and schematic diagrams, to assist in the rapid assessment and integration of the LM2735XSD regulator into various applications.

Support and Resources

For further assistance, Texas Instruments provides extensive online resources, including datasheets, application notes, and technical support through their community forums and customer service channels.
