The ISO7420DR, manufactured by Texas Instruments, is a high-performance, dual-channel digital isolator designed to provide robust signal isolation for various electronic applications. With its cutting-edge capacitive isolation technology, the ISO7420DR ensures reliable data transmission and signal integrity in environments with high electrical noise or where galvanic isolation is required.

Key Features

• Isolation Rating: The device offers an isolation voltage of 2500 Vrms for 1 minute per UL, providing excellent protection against high voltage transients and surges.
• Data Rate: Capable of supporting data rates up to 1 Mbps, the ISO7420DR is suitable for both low-speed and moderate-speed digital communication.
• Low Power Consumption: Its low power consumption makes it an ideal choice for power-sensitive applications, ensuring efficiency without compromising performance.
• Robustness: The isolator is operational over a wide temperature range of -40°C to +125°C, ensuring reliable performance under extreme conditions.
• Fail-Safe Design: The device features a fail-safe design that guarantees a logic high output if the input power or signal is lost, enhancing system safety.

Applications

The ISO7420DR is versatile and can be employed in a variety of applications, including:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Motor control circuits
• Power supply management
• Communication systems

Package and Quality

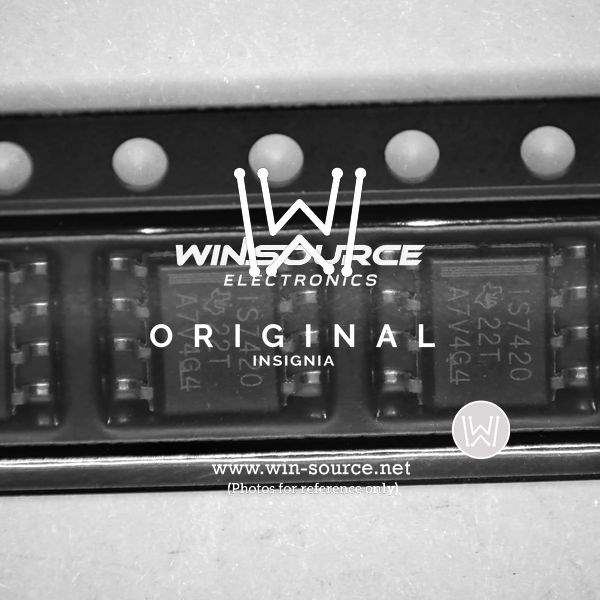

Encased in an 8-pin SOIC package, the ISO7420DR is compact and suitable for space-constrained applications. Texas Instruments ensures high manufacturing standards, and the product complies with relevant industry certifications and environmental directives, such as RoHS.

Ordering and Availability

The ISO7420DR is available for order in various quantities, catering to both small-scale projects and large volume production needs. Detailed pricing and availability information can be obtained from authorized Texas Instruments distributors or by visiting the Texas Instruments website.
