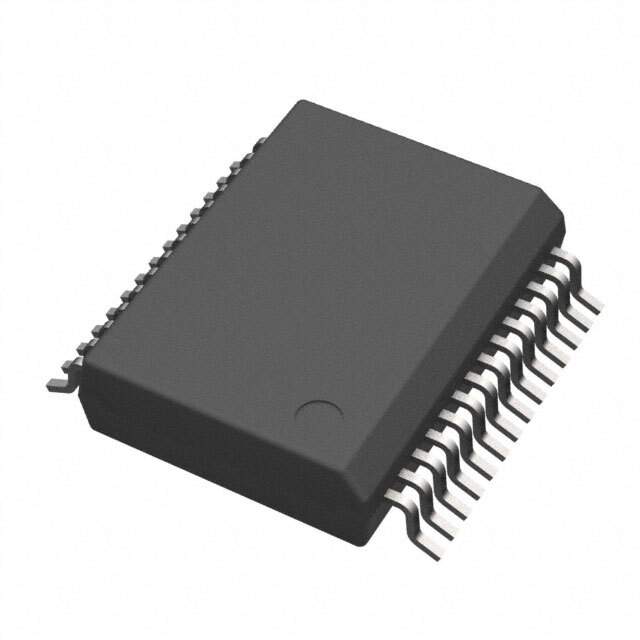

The ADUM6422ABRNZ5 is a high-performance, quad-channel digital isolator with an integrated, isolated DC-to-DC converter. Manufactured by Analog Devices Inc., a leader in high-performance semiconductors, this product is designed to offer both signal isolation and power isolation in a single package. It is a perfect solution for applications requiring complete isolation between the low voltage and high voltage sides, such as industrial PLCs, inverter controls, and isolated sensor interfaces.

Key Features

• Integrated Isolation: This device features four independent isolation channels, providing robust signal isolation and minimizing signal distortion.
• Isolated DC-to-DC Converter: The integrated DC-to-DC converter delivers isolated power, eliminating the need for a separate isolated power supply and simplifying the design process.
• High Data Rates: The ADUM6422ABRNZ5 supports data rates up to 25 Mbps, making it suitable for high-speed communication protocols.
• High-Temperature Operation: With an operating temperature range of -40°C to +125°C, this device is designed to perform reliably in harsh environmental conditions.
• Regulatory Compliance: It meets stringent regulatory standards, including UL, CSA, and VDE certifications, ensuring safety and reliability in various applications.

Applications

The versatility of the ADUM6422ABRNZ5 makes it an ideal choice for a wide range of applications, including but not limited to:

• Industrial Automation
• Motor Control Systems
• Power Supply Control
• Data Acquisition Systems
• Medical Equipment

Product Specifications

The ADUM6422ABRNZ5 is a testament to Analog Devices Inc.'s commitment to providing advanced isolation solutions that enhance system performance and safety. Its integrated approach to signal and power isolation makes it a highly efficient and reliable choice for designers and engineers across various industries.
