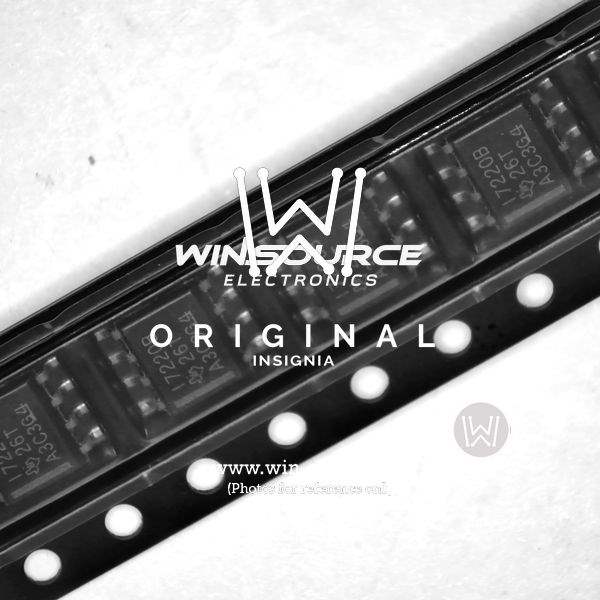

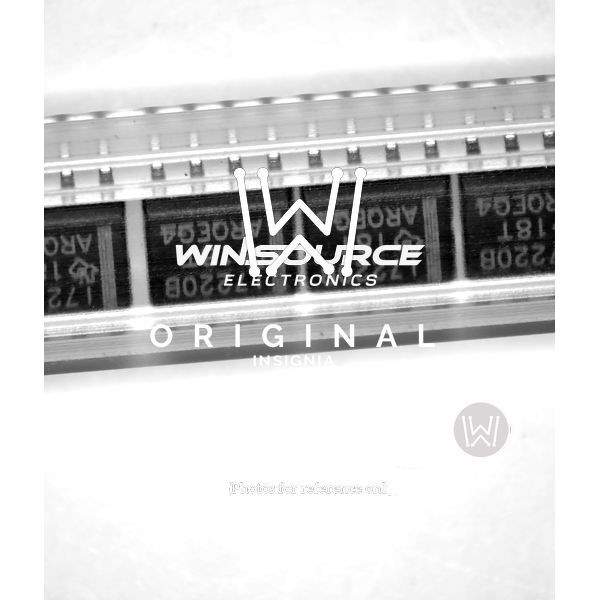

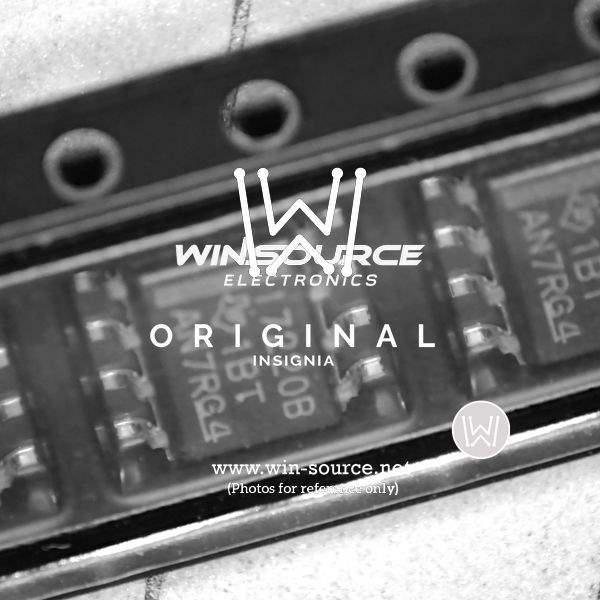

ISO7220BDR Real Image ISO7220BDR real image559 ISO7220BDR Real Image1 ISO7220BDR Real Image2
Same model may have multiple batches, images only for reference.
ISO7220BDR Real Image ISO7220BDR real image559 ISO7220BDR Real Image1 ISO7220BDR Real Image2
ISO7220BDR Real Image ISO7220BDR real image559 ISO7220BDR Real Image1 ISO7220BDR Real Image2
Same model may have multiple batches, images only for reference.

ISO7220BDR

Part No ISO7220BDR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheet
ISO7220BDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 5Mbps
Propagation Delay tpLH / tpHL (Max) 70ns, 70ns
Pulse Width Distortion (Max) 3ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 002043-ISO7220BDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ISO7220B
Introduction Date February 01, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ISO7220BDR CAD Model

Description

The ISO7220BDR is a high-performance, digital isolator product from Texas Instruments (TI), a reputable global semiconductor design and manufacturing company.

  • Package: 8-pin SOIC
  • Channels: Two isolated channels (one forward, one reverse)
  • Supply Current: 1.5mA per channel @ 1Mbps
  • Isolation Voltage: 2500 Vrms for 1 minute per UL 1577
  • Data Rates: Up to 1Mbps
  • Temperature Range: -40°C to +125°C
  • Compliance: RoHS compliant
