Products specifications Report Issue?

Win Source Part Number WS1168729-ISO6720BDR
Win Source Part Number Cross
Manufacturer Texas Instruments
Category Isolators Digital Isolators
Series ISO672x, Functional Safety (FuSa)
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Technology Capacitive Coupling
Type CAN, RS232, RS485, SPI
Isolated Power No
Channel Type Unidirectional
Ultra Librarian 3D Model Ultra Librarian ISO6720BDR CAD Model

Description

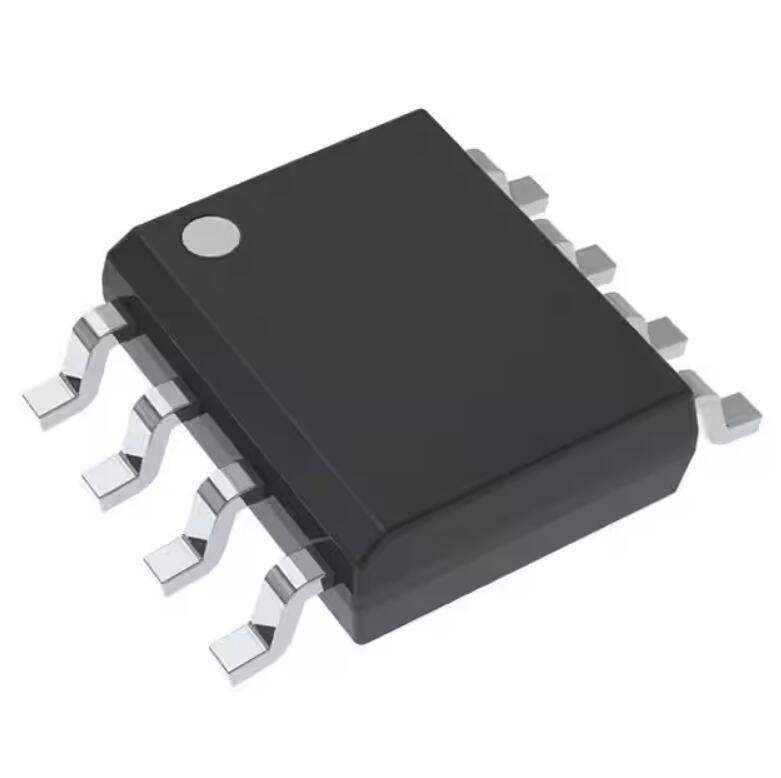

The ISO6720BDR by Texas Instruments represents a cutting-edge solution in the realm of signal isolation, designed to ensure robust communication in electrically noisy environments. This high-performance digital isolator is part of TI's extensive portfolio of isolation products, intended to provide reinforced isolation and safeguard sensitive electronics from high-voltage spikes and transients.

Key Features

  • High Isolation Voltage: The ISO6720BDR offers an impressive isolation voltage of 3000 Vrms, providing a high degree of protection for sensitive circuitry.
  • Channel Configuration: It features a dual-channel configuration, with two forward and zero reverse-direction channels, making it ideal for unidirectional data transfer applications.
  • High-Speed Operation: With a signaling rate of up to 25 Mbps, this digital isolator supports high-speed data transfer, suitable for a variety of digital communication protocols.
  • Low Power Consumption: Optimized for efficiency, the ISO6720BDR operates with low power consumption, making it a suitable choice for power-sensitive applications.
  • Robust Electromagnetic Compatibility (EMC): Engineered for environments with high electromagnetic interference, it boasts excellent EMC performance, including low emissions and high immunity.

Applications

The versatility of the ISO6720BDR allows it to be used across a diverse range of applications, including but not limited to:

  • Industrial automation and control systems
  • Medical equipment with stringent isolation requirements
  • Motor drive and inverter applications
  • Data communication for power supplies
  • Isolated sensor interfaces and data acquisition systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the ISO6720BDR is no exception. It is manufactured using TI's proprietary silicon dioxide (SiO2) insulation technology, ensuring long-term reliability and performance. Additionally, this product is available in a compact SOIC-8 package, making it easy to integrate into various design layouts.

For engineers and designers looking for a reliable and efficient solution for digital isolation, the ISO6720BDR from Texas Instruments is an excellent choice, delivering both performance and peace of mind.
