Product Overview: LTM2892HY-I#PBF

The LTM2892HY-I#PBF is a high-performance, isolated USB μModule transceiver from Analog Devices Inc., designed to provide a robust communication interface for data acquisition and control applications. This innovative product ensures reliable data transfer in noisy environments typically found in industrial, medical, and automotive systems.

Key Features

• Isolation: The LTM2892HY-I#PBF features 2500V RMS of galvanic isolation, which prevents ground loops and interrupts noise that can compromise the integrity of the data signal.
• Integrated Power: An integrated, isolated DC/DC converter provides power to the transceiver and the isolated side of the interface, simplifying the system design and reducing external component requirements.
• High-Speed USB Interface: This product supports full-speed (12Mbps) USB communication, offering a fast and reliable link for data transfer between devices.
• Robust ESD Protection: The device includes ESD protection structures on all pins, enhancing the system's resilience against electrostatic discharges and improving overall reliability.
• Temperature Range: The LTM2892HY-I#PBF operates over the industrial temperature range of -40°C to 105°C, ensuring consistent performance in harsh environments.

Applications

• Industrial Control and Automation
• Medical Equipment
• Automotive Diagnostics and Control Systems
• Test and Measurement Devices
• Isolated USB Data Transfer

Quality and Reliability

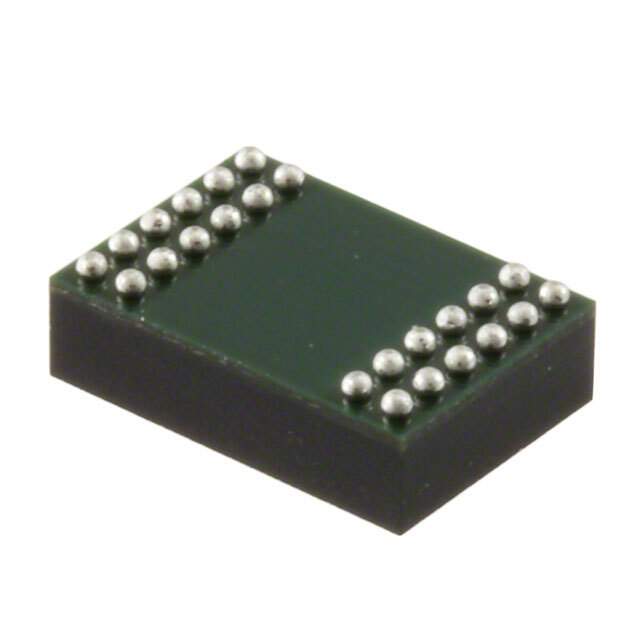

As with all Analog Devices Inc. products, the LTM2892HY-I#PBF is manufactured to the highest quality standards, ensuring reliability and performance in critical applications. This component is packaged in a compact, surface-mountable BGA package, which is RoHS compliant and designed for solder reflow processes.

Conclusion

The LTM2892HY-I#PBF from Analog Devices Inc. represents a state-of-the-art solution for designers who require an isolated USB interface with integrated power supply, robust ESD protection, and high-speed data transfer capabilities. Its wide temperature range and galvanic isolation make it an ideal choice for challenging environments where data integrity and reliability are paramount.
