Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr Texas Instruments
Package Box
Product Status Active
Type Interface
Function Digital Isolator
Utilized IC / Part ISO1540, ISO1541
Primary Attributes 2 Channel Bi-Directional
Supplied Contents Board(s)
Secondary Attributes 3V ~ 5.5V Supply
Base Product Number ISO154
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 922076-ISO154XEVM
Ultra Librarian 3D Model Ultra Librarian ISO154XEVM CAD Model

Description

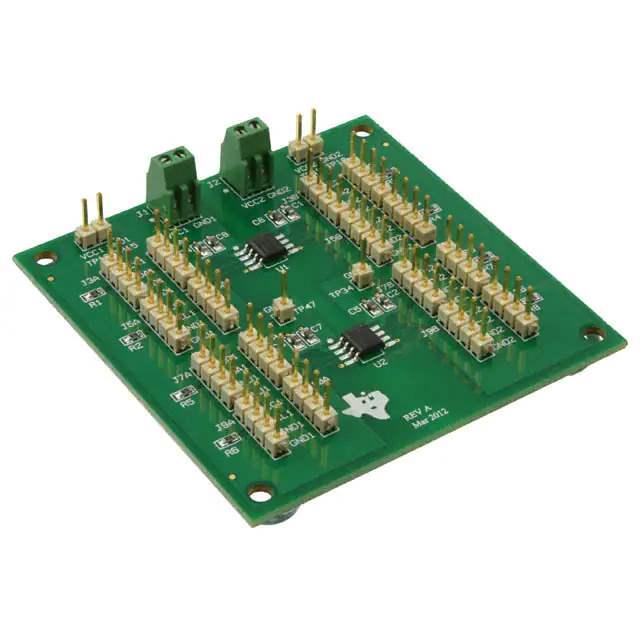

The ISO154XEVM from Texas Instruments is a comprehensive evaluation module designed to showcase the features and capabilities of the ISO154x family of digital isolators. These devices are essential for ensuring signal integrity and electrical isolation in a variety of industrial and telecom applications.

Key Features

  • Robust Isolation: The ISO154x series offers reinforced isolation of up to 5000 Vrms, providing reliable protection against high voltage spikes and surges.
  • High-Speed Data Transfer: With support for data rates up to 100 Mbps, these digital isolators ensure fast and accurate data communication.
  • Low Power Consumption: Designed for efficiency, the ISO154x devices consume minimal power, making them ideal for power-sensitive applications.
  • Flexible Power Supply: The EVM supports a wide range of supply voltages, accommodating various application requirements.
  • Signal Integrity: The integrated edge rate control feature minimizes emissions and reduces EMI, ensuring clean signal transmission.

Applications

The ISO154XEVM is suited for testing and development in applications such as:

  • Industrial automation
  • Motor control systems
  • Medical equipment
  • Power inverters
  • Telecommunications

Design and Development Support

The evaluation module is designed to facilitate easy integration and testing. It includes onboard connectors that make it simple to hook up to existing systems for rapid prototyping. Additionally, the EVM comes with comprehensive documentation and support materials, including schematics, layout files, and application notes, to assist developers in getting up to speed quickly with the ISO154x digital isolators.

Ordering Information

The ISO154XEVM can be ordered directly from Texas Instruments or through authorized distributors. Detailed information about pricing and availability can be found on the Texas Instruments website.

With the ISO154XEVM, engineers and designers can evaluate the performance of the ISO154x digital isolators in their own systems, ensuring they meet the stringent requirements of modern electronic designs.
