The ISO1540QDQ1 from Texas Instruments is a robust, high-performance, low-power, bidirectional isolator designed for I2C communication. This device is particularly engineered to provide galvanic isolation between two I2C buses, ensuring reliable data transfer while protecting sensitive components from the harmful effects of electrical noise, ground loops, and voltage spikes.

Key Features

• Galvanic Isolation: The ISO1540QDQ1 provides up to 2500 V_RMS for 1 minute per UL and VDE, which is essential for ensuring safety and preventing damage to your electronics from high-voltage transients.
• Low Power Consumption: Its energy-efficient design makes it ideal for battery-powered applications, ensuring a longer battery life and reduced power costs.
• Bidirectional Communication: This isolator supports bidirectional I2C communication, enabling seamless data transfer between master and slave devices without the need for direction control signals.
• High-Speed Operation: With support for up to 1-Mbps data rates, the ISO1540QDQ1 is suitable for high-speed I2C applications, ensuring quick and efficient data transfer.
• No Start-Up Initialization Required: The device is designed to operate immediately upon power-up, with no start-up initialization required, simplifying system design and reducing start-up time.

Applications

The ISO1540QDQ1 is versatile and can be used in a variety of applications, including:

• Industrial Automation
• Automotive Systems
• Medical Equipment
• Test and Measurement Instruments
• Isolated I2C Interfaces

Quality and Reliability

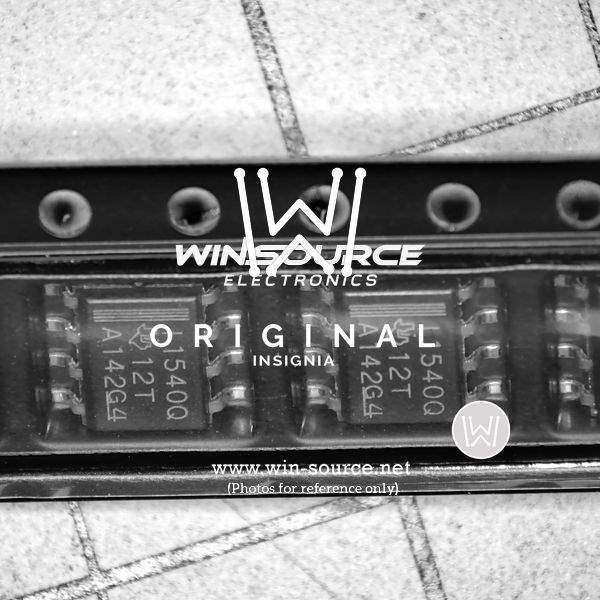

As with all Texas Instruments products, the ISO1540QDQ1 is manufactured to the highest quality standards. It is designed to meet stringent automotive requirements and is AEC-Q100 qualified for automotive applications. The device is also available in a compact, surface-mount, 8-pin SOIC package, making it easy to integrate into your design.

For detailed specifications, application notes, and support resources, please visit the Texas Instruments website.
